HKM01-4K6G is a 4K60Hz HDMI KVM extender that use a cost-effective Ethernet cable to send HDMI, USB, Analog audio, RS232 and IR signals with transmission distance up to 100 meters.By using (optional) 1G SFP modules, you can bridge up to 60 km, depending on the modules and fiber cable.
Its TX unit has an HDMI loop out port for an extra HDMI display.
The built-in 4 USB2.0 ports at RX unit allow you to control the connected HDMI device at remote end.
The KVM extender can perfectly apply to the broadcasting system, digital signage, home network integration, industrial control, etc.
- Resolution up to 4K60Hz 4:4:4.
- Signal extension up to 100M.
- 60KM over single mode fiber optic.
- Built-in local loop out for an extra HDMI display at TX side.
- Built-in 4 USB ports at RX unit.
- Supports bi-directional analog audio transmission for microphones and headphones.
- Supports RS232 transmission and EDID management.
- Supports IR passthrough.
|
|
|
Experience stunning visuals with HKM01-4K6G, delivering resolutions up to 4K@60Hz for unparalleled picture quality. |
|
 |
Ultra-Long Distance TransmissionThrough rigorous testing, HKM01-4K6G can reach 160m using Cat5e cables and up to 60km using optical fiber modules, catering to various mid to long-range needs. |
Minimal Video Latency
With less than 1 frame of video latency, HKM01-4K6G ensures virtually imperceptible delays, guaranteeing real-time display accuracy.
|
|||
 |
 |
|||

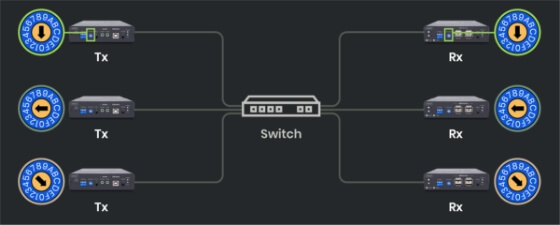

Flexible Multi-Device Configuration
By connecting the transmission and receiver ends to a network switch, you can effortlessly control multiple devices. Align rotary switch settings at both ends for easy multi-device control.
|
||
 |
||

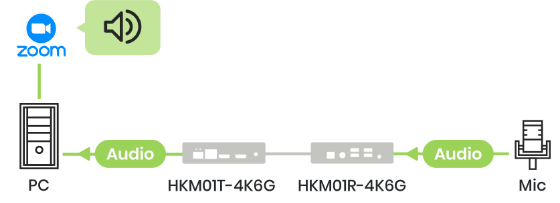

Customizable Audio Inputs and OutputsLet your setup adapt to your audio needs seamlessly. Depending on the connection of the 3.5mm, HKM01-4K6G automatically configures audio inputs and outputs.It even allows remote microphone audio to be transmitted back to the computer. Setup instructions are available in the user manual for your convenience. |
||
 |
||
Additional Features4-Port USB 2.0 |
||
 |
||
Support for RS232 and IR signals |
||
 |
||
HDMI Local Loop-out |
||
 |
||
Three Different EDID Settings |
||
 |
||
Connection example |
||
 |
.png){kind=logo} |
||
Live Demonstration:HDMI KVM Extender for 4K60Hz Long-Distance Transmission |
||
 |
||
|
SC&T 4K@60Hz HDMI KVM Extender – HKM01-4K6G has been on the market for some time now. To help our customers fully understand the powerful capabilities of the HKM01-4K6G, we are presenting a comprehensive live demonstration.
In this video, you will learn about the full performance and operational instructions of the HKM01-4K6G, including:
|
||
Package Includes
| Item | Amount |
| HKM01T-4K6G (Transmitter) | 1 pc |
| HKM01R-4K6G (Receiver) | 1 pc |
| DC 5V2A Power Adapter | 2 pcs |
| IR Emitter Cable | 1 pcs |
| USB A to B cable | 1 pcs |
| Screw | 8 pcs |
| Screw plug | 8 pcs |
| Rubber gasket | 2 pcs |
Specifications
| Support | ||
| Compliance | HDMI 2.0, HDCP 2.2, USB 2.0/ 1.1/ 1.0 | |
| Max. Video Resolution | 4K@60Hz | |
| Max. Transmission Distance | 100M over CAT5e; 60KM over single mode fiber optic | |
| Audio Format | Pass through | |
| RS232 Baud Rate | 115200 bps | |
| IR Support | 20-60Khz , ±45°, 5M | 20-60Khz , ±45°, 5M |
| Ports & Interfaces | ||
| Video Input | 1 x HDMI Type-A | 1 x RJ45, 1 x SFP |
| Video Output | 1 x RJ45, 1 x SFP | 1 x HDMI Type-A |
| Video Loop-out | 1 x HDMI Type-A | - |
| Analog Audio Input | 1 x 3.5mm Stereo Phone Jack | 1 x 3.5mm Stereo Phone Jack |
| Analog Audio Output | 1 x 3.5mm Stereo Phone Jack | 1 x 3.5mm Stereo Phone Jack |
| IR Receiver | - | 3.5mm Stereo Phone Jack 20~60KHz / ±45°, 5M |
| IR Emitter | 3.5mm Stereo Phone Jack 20~60KHz / ±45°, 5M | - |
| RS232 Interface | 1 x 3.5mm Phone Jack | 1 x 3.5mm Phone Jack |
| USB Interface | 1 x USB Type-B | 4 x USB Type-A |
| Power | ||
| Power Supply | 5V 2A | 5V 2A |
| Power Consumption | 4.78W | 3.25W |
| Ambient Temperature | ||
| Operation | 0 to 55℃ | |
| Storage | -40 to 80℃ | |
| Humidity | up to 95% | |
| Physical Characteristic | ||
| Dimension | 125 x 123 x 32mm | 125 x 123 x 32mm |
| Weigh | 345g | 353.6g |
