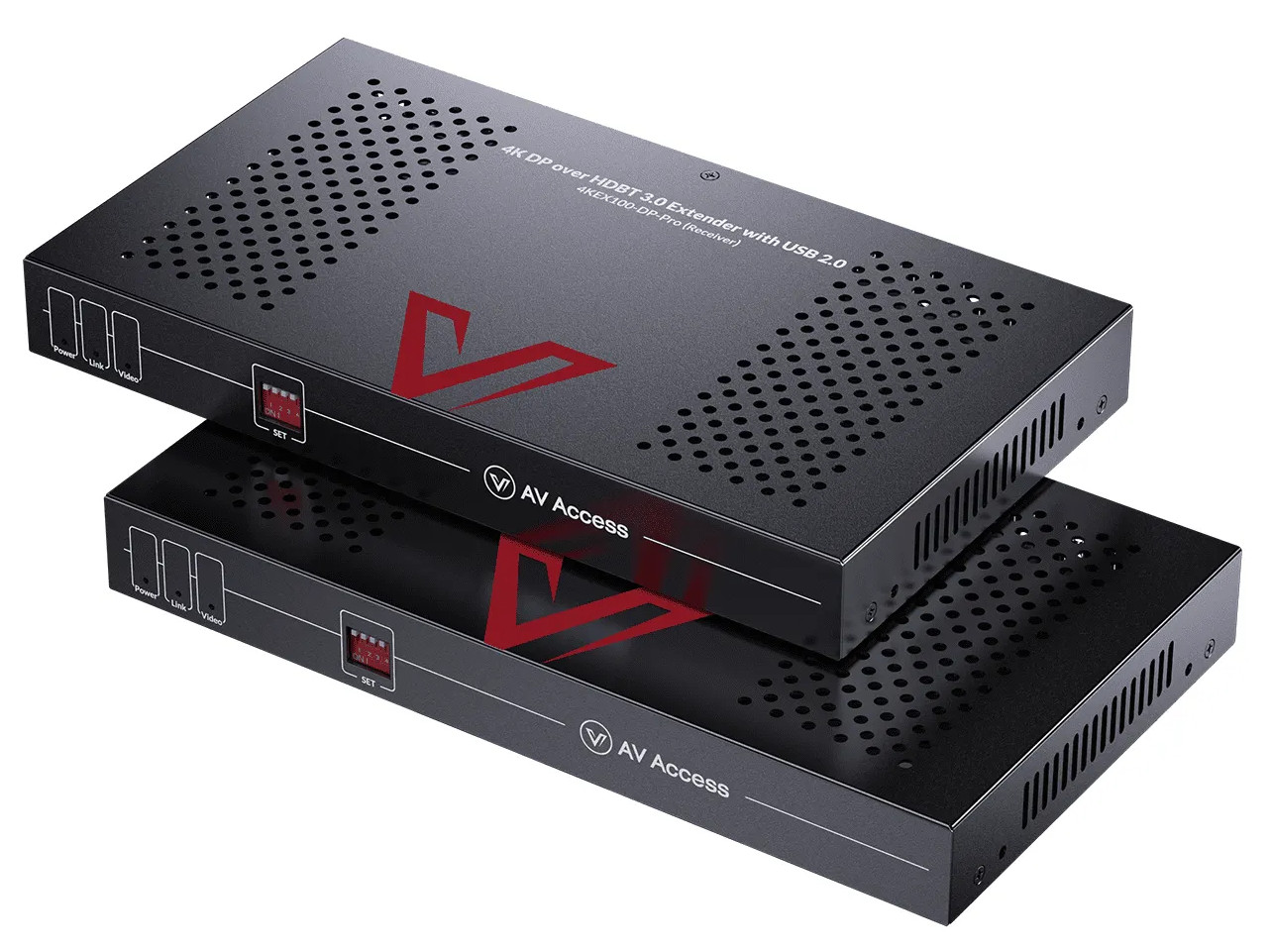

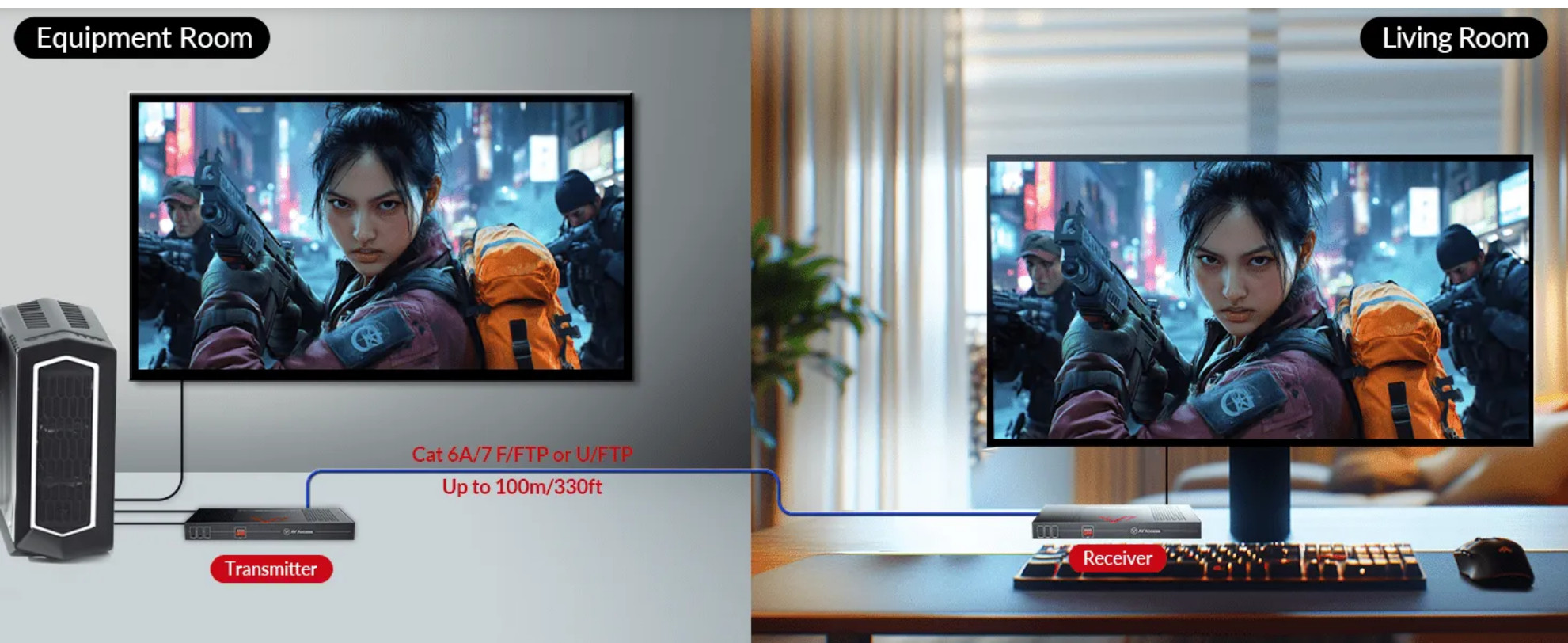

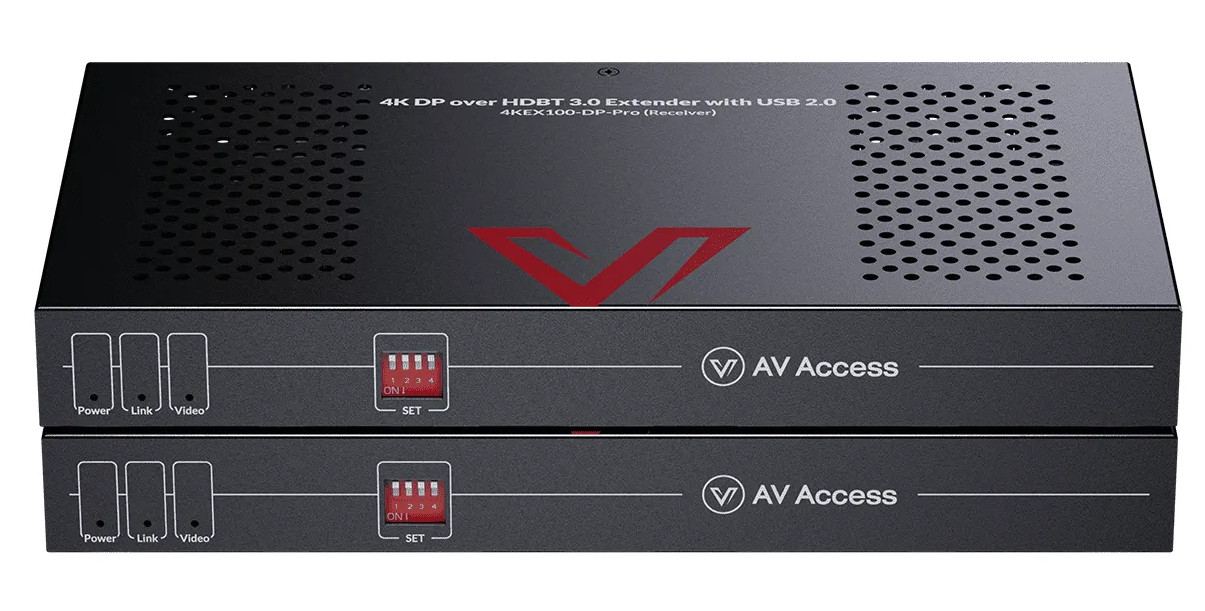

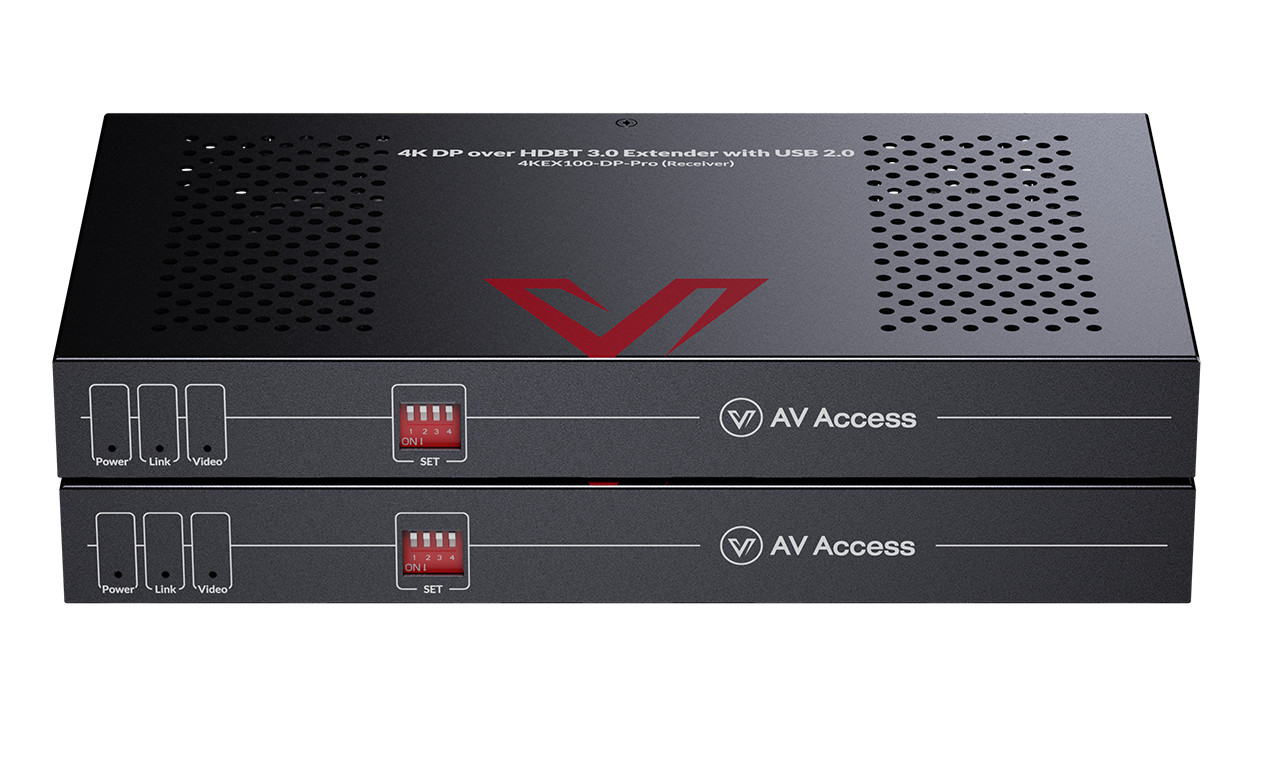

4K60Hz, 2K144Hz, 1080p240Hz DisplayPort KVM-Extender-Set, 4x USB 2.0, Zero Latency, up to 100m, AV Access 4KEX100-DP-Pro

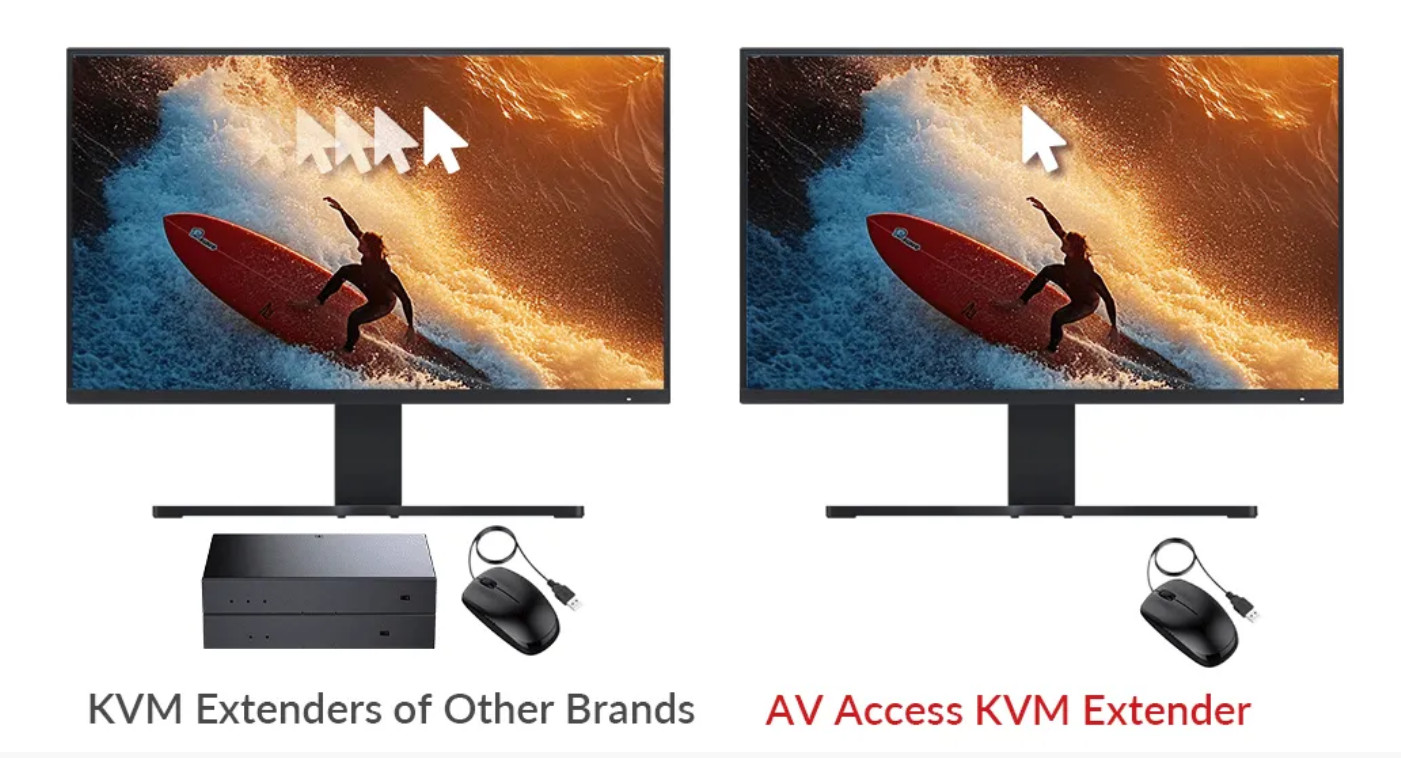

High Refresh Rate for Fluid Gameplay

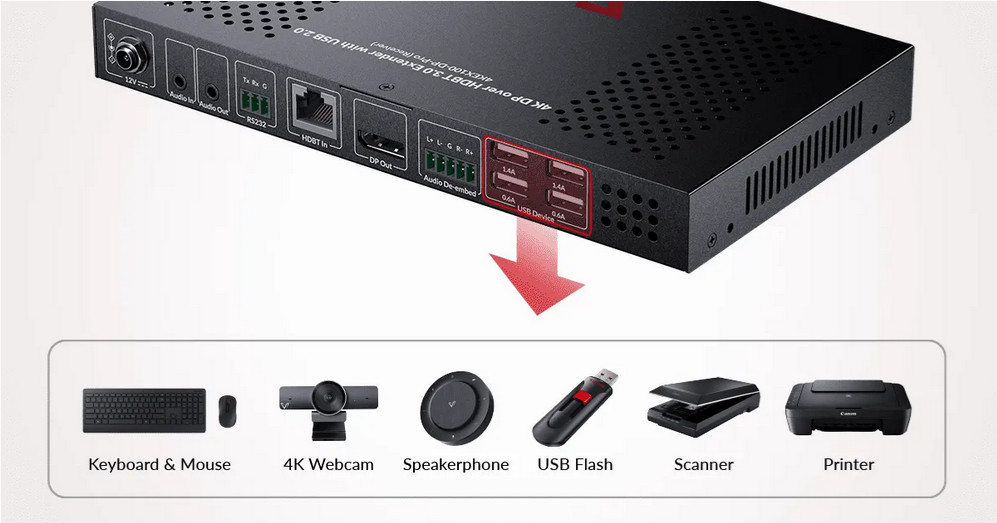

Compatibility with Multiple USB Devices

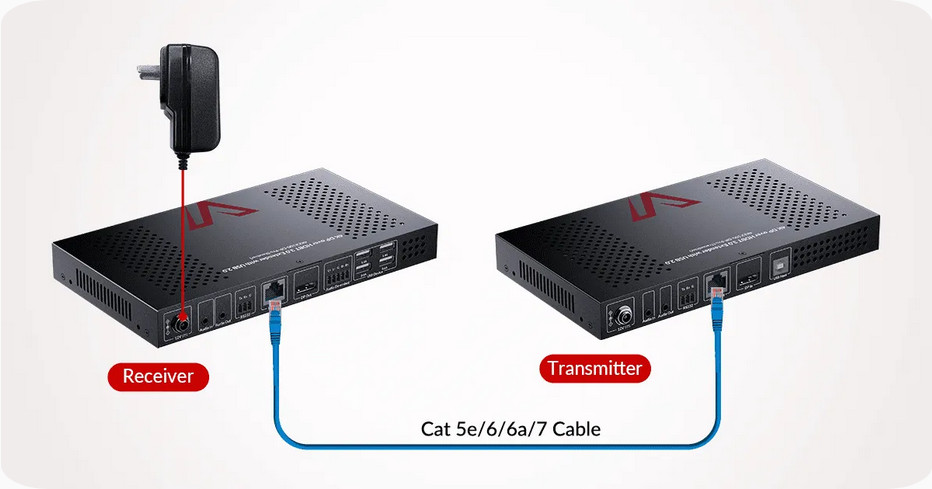

One-Way Power over HDBaseT (PoH)

Simplify your setup with PoH technology, powering both the transmitter and receiver through a single connection to the receiver. This smart design reduces cables and keeps your installation neat and tidy, ideal for professional use.

Support Two-Way Audio Pass-Through

Enjoy seamless two-way audio pass-through, allowing audio to flow both ways between the transmitter and receiver. This feature ensures clear, synchronized sound for applications like conference rooms and multimedia setups, making audio management effortless.

Technical

Input/Output Video Signal

DP 1.2a with 4K@60 YUV 4:4:4, HDCP 2.2

Input/Output Resolutions

VESA:

800 x 600⁸, 1024 x 768⁸, 1280 x 768⁸, 1280 x 800⁸, 1280 x 960⁸, 1280 x 1024⁸, 1360 x 768⁸, 1366 x 768⁸,

1440 x 900⁸, 1600 x 900⁸, 1600 x 1200⁸, 1680 x 1050⁸, 1920 x 1200⁸, 2048 x 1152⁸,

SMPTE:

1280 x 720P^6,7,8, 1920 x 1080P^6,7,8,9, 3840 x 2160^2,3,5,6,8, 4096 x 2160^2,3,5,6,8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz

Audio Format

· DP In/Out: audio formats including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

· Audio In/Out/Audio De-embed: Stereo

HDR Format

All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision

Maximum Data Rate

Supports DP 4 lanes, and up to 5.4Gbps per lane

USB

USB 2.0 and backward compatible with USB 1.1/1.0,

Maximum bandwidth is 350Mbps
