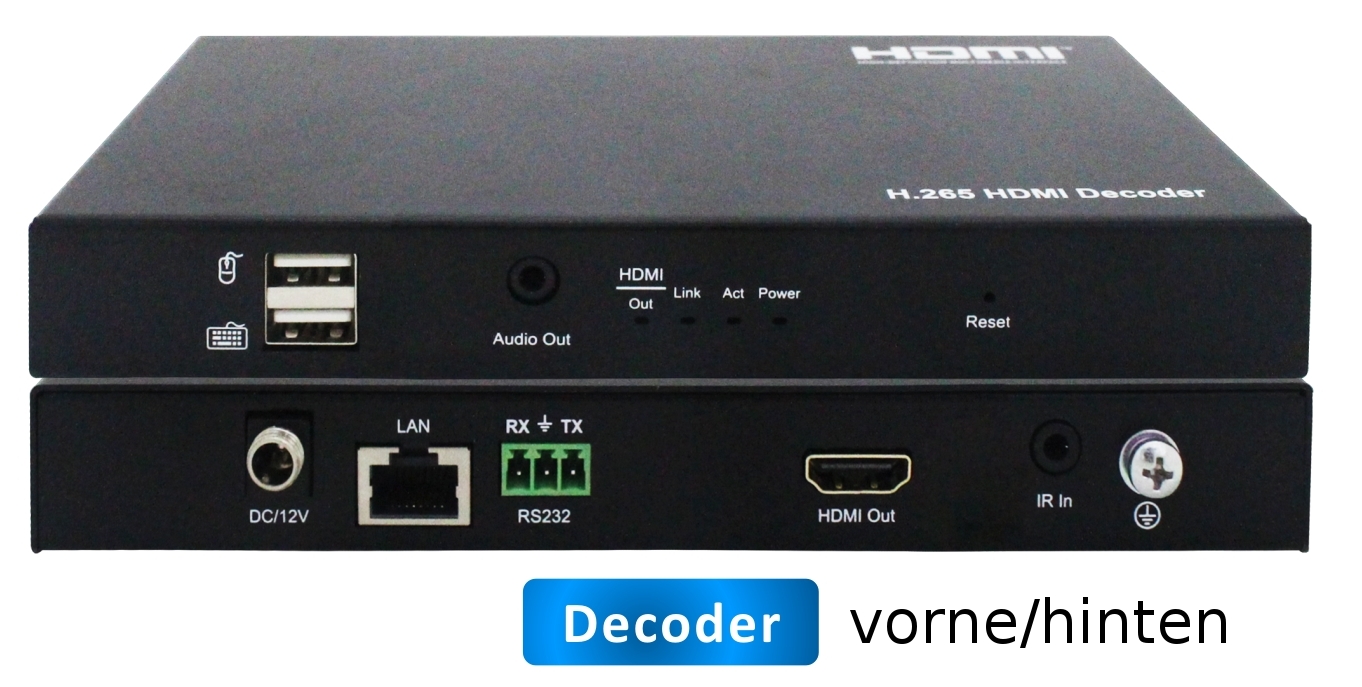

4K-Receiver (Decoder) HDMI/USB2.0 over IP Extender for KVM-Matrix/Videowall/Multi-Viewer, FoxUn SX-UHE01-RX
A flexible growing requirement system for all applications:
- direct 1: 1 KVM extender connection over a LAN cable connection up to 120 meters in length

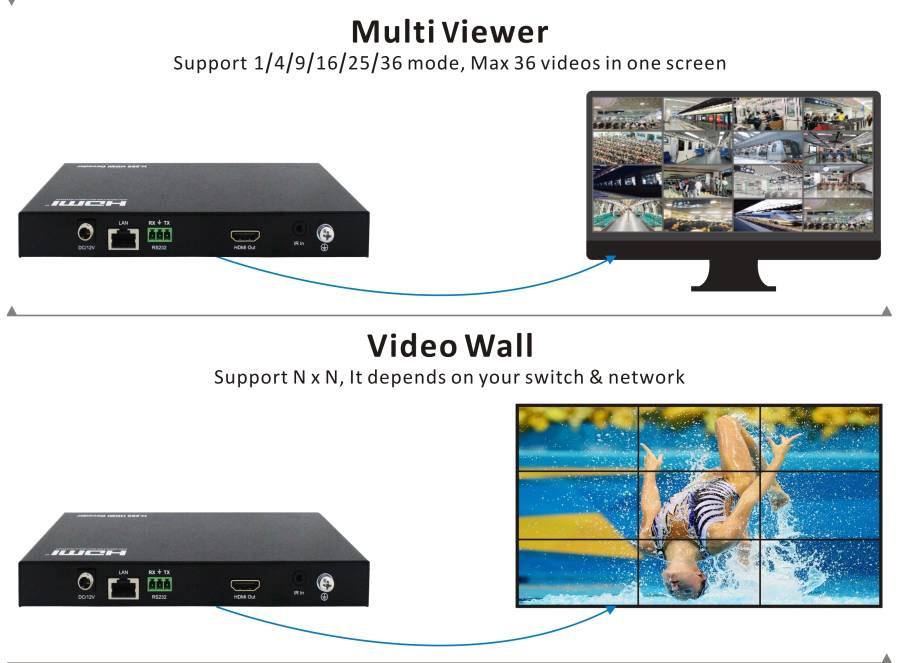

- VideoWall = a source can be displayed as a large image on multiple monitors mounted in 2x2, 3x3, etc. as a monitor wall (manageable GB Ethernet switch required)
- MultiViewer = multiple sources can be displayed on a large 4K monitor (manageable GB Ethernet switch required)

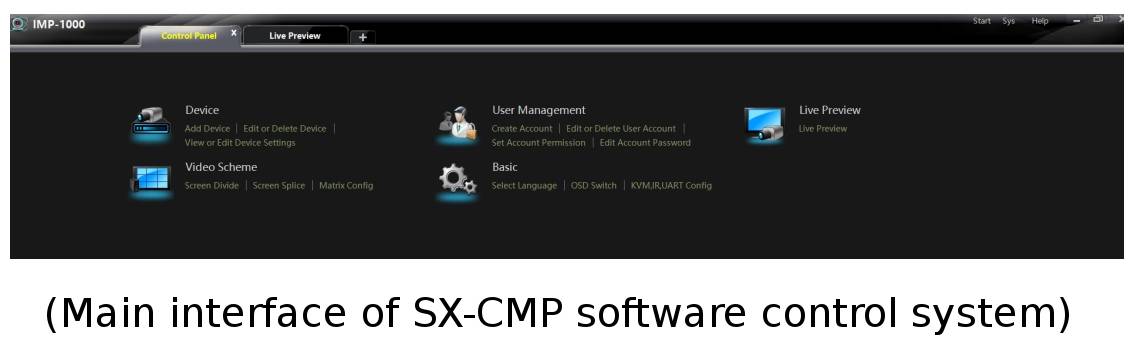

- KVM Matrix = any number of operators can be independently assigned to each computer via the CMP control software (possibly installed on each computer), manageable GB Ethernet switch required
Transmission is via a patched network cable connection or IP (via a manageable GB Ethernet switch within a subnet). The system transmits with HDMI up to 4K @ 30 Hz Ultra HD and provides the transmitter with a local "additional" monitor output, so that not only "remote", but also "locally" (on the computer) can be operated.
By using "only one" network cable, the otherwise possible distances can be increased extremely (up to 120 m directly and over IP even further).
This makes this system an extremely powerful extender and an easy-to-use KVM Matix switch system, which you can expand as needed.
Features:
- Compression Technology: H.265
- Max resolution 4K@30Hz YUV 4:4:4, 1080p@60Hz

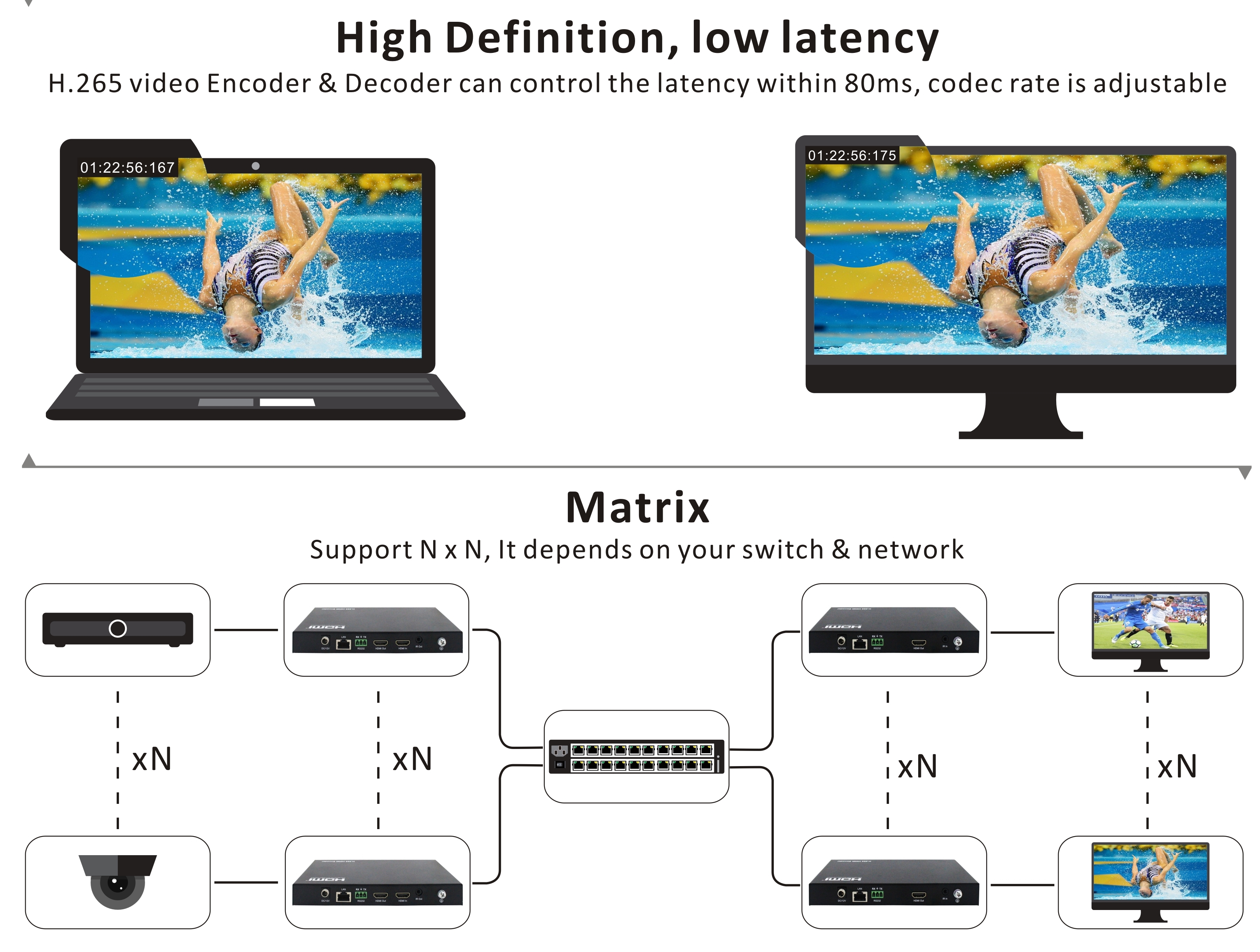

- Latency Time (from TX to RX) only 30-80 millisecond
- Transmit up to 120 m over single Cat5e/6 cable, with 1x looping HDMI output
- Request for (many to many mode) IGMP Switch
- Support IP/ICMP/IGMP/TCP/UDP Control (PC Tool)

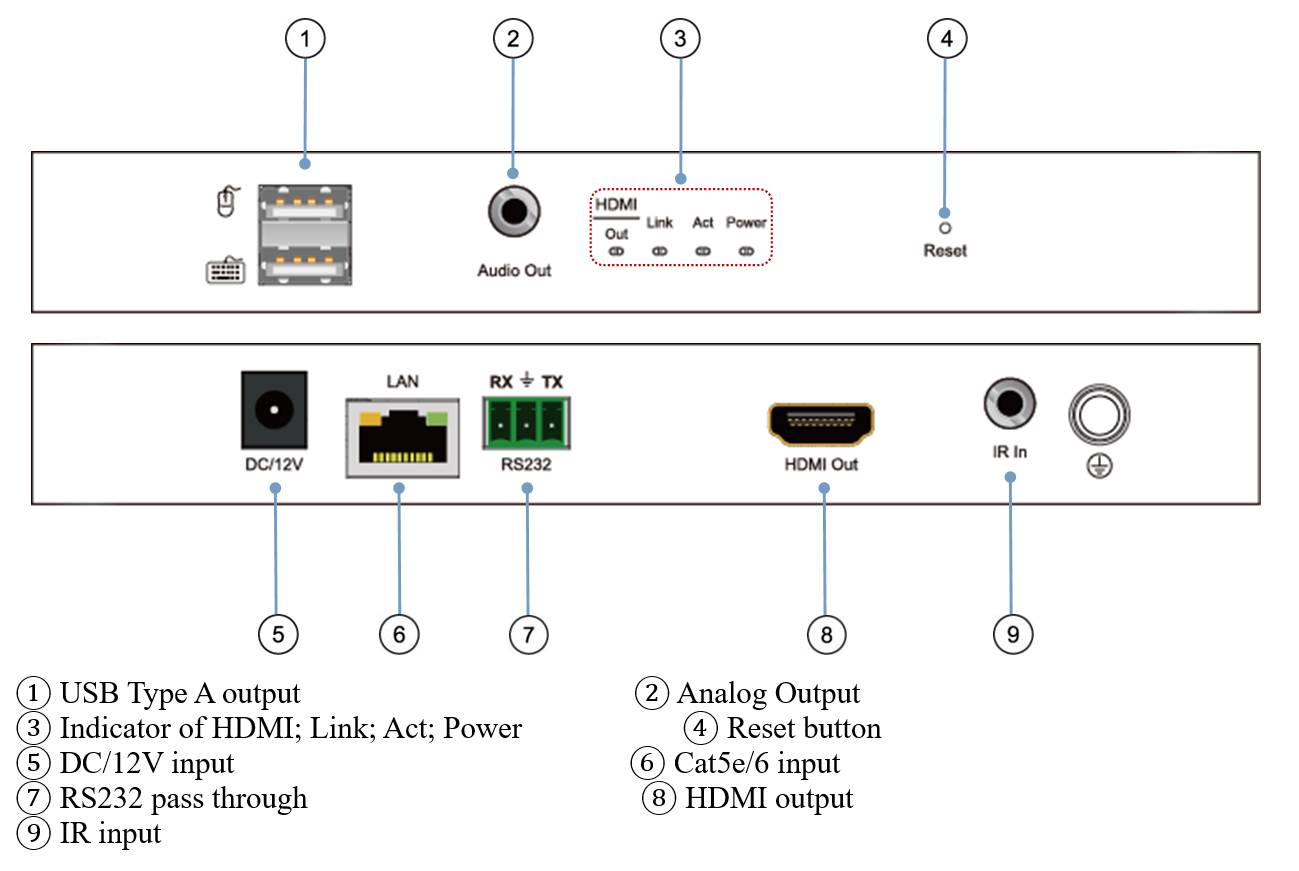

- Support KVM (HDMI 1.4, USB 2.0), HDMI-Audio, analogue Audio output, RS232-Extension, IR-Extension, Local HDMI output on TX
- Additional Features VLC / Looping HDMI output
- Support RTSP/RTMP protocol (needs managed GB-Switch, if it is usedover network)
- Support Video Wall, Multi Viewer, Matrix work with CMP system supports real-time switch OSD; Displaying firmware version, IP address, MAC address, etc
- Support Multicast (one to many, many to many), Unicast (one to one)
- DC12V external Power supply
Package Contents:
1) Main Unit Decoder x1
2) Power Adapter DC12V/1A x1
3) IR TX cable
4) Disk (PC TOOL; User manual; Update software; CMP system) x1
Specifications:
| Performance |
| Protocol |
H.265 Encoder over TCP/IP |
| Video format |
60Hz: 1080p/4K2K/720P/1280*1024/800*600 etc.
30Hz: 4K up to 3840 x 2160 |
| Audio format |
HDMI audio and
analoge Embedded and analog Extractor |
| Streaming Bit Rate |
0-100Mbps Default: 20Mbps |
| IR frequency |
38-56Khz |
| RS232 Baud Rate |
115200 |
| IP SETTING |
| Request for Switch/Router |
Support IGMP, support DHCP |
| Environmental & Power Requirements |
| Operating temperature |
-5 to +35 ℃ （+23 to +95℉） |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Power supply |
12V/1A |
| Power consumption |
TX: 4.68W; RX: 3.36W |
| Dimension |
TX&RX: 184*95*24mm |
| Weight |
0.5 kg |
B2B Product - Designed for use in a commercial environment.
