4K DisplayPort / USB KVM-Extender-Set 4K 4096x2160 30 Hz 4:4:4, max. 100 m, SC&T DP02U-2
DP02U-2 DisplayPort CAT KVM-Extender is based on HDBaseT technology using only one cost effective CAT5e/6 cable to extend your DisplayPort signal up to 100 meters at 1080p, support up to 4K UHD.
With special long reach mode up to 150M at 1080p 60Hz 8bits. It is an ideal solution for extending PC/laptop to a display output to a projector/monitor application.
Features:
- Extends DisplayPort signal over one CAT5e/6 cable
- DP 1.2a. HDCP compliant
- Uncompressed high definition video up to 4K UHD
- Support 1080p @ 60Hz @ 8bits at 150M (Long Reach Mode)
- Support 1080p @ 60Hz @ 16bits at 100M
- Up to 100 m at 4K UHD 4096x2160 @ 30 Hz 4:4:4 (9 Gbps)
- 4-Port USB 2.0 in receiver unit
- Bi-Directional RS232 (over Adaptercable)
- Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
Cable:
Link cable recommend use high quality Cat.5e、Cat.6、Cat.6a、Cat.7 UTP / SFTP cable.
Poor quality cable or network connection or improper construction will cause unstable connection, video or sound disruptions, picture noise appears.
Distance chart by different cable:
|
Cable Type
|
Range
|
Supported Video
|
|
CAT5e / CAT6
CAT6a / CAT7
|
150 M
|
Up to 1080p 60Hz 8bit
|
|
CAT5e / CAT6
CAT6a / CAT7
|
100 M
|
Up to 1080p 60Hz 12bit |
|
CAT5e
|
90 M
|
1080p 60Hz 16bit
up to 4096x2160@30Hz 4:4:4(9Gbps)
|
|
CAT6 / CAT6a / CAT7
|
100 M
|
Note: MST-Hub on Receiver Side ist not supported.
DP02U Package Include:
DP02UT Transmitter x 1 pcs

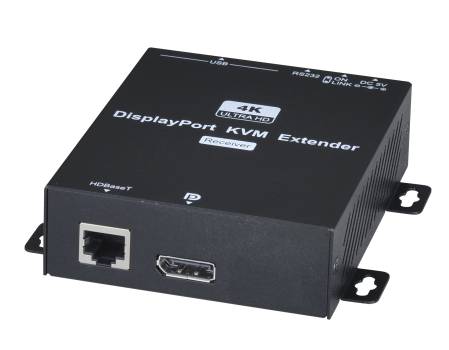

DP02UR Receiver x 1 pcs
USB A/B cable x 1 pcs (approx. 1.45m long)
DB9 (M)/3.5mm STEREO PHONE JACK x 1
DB9 (F)/3.5mm STEREO PHONE JACK x 1
Mounting Screw pack x 2 bags
Power Adapter DC 5V / 2A x 2 pcs
Specification:
|
ITEM NO.
|
DP02UT
(Transmitter)
|
DP02UR
(Receiver)
|
|
DP Video Support
|
1080p @ 60Hz @ 48bit 3D,
up to 4096x2160 / 30Hz / 4:4:4
|
|
DP Audio Support
|
up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA
|
|
Distance
|
100M UHD (max), 150M FHD (max)
|
|
Input / Output Interface
|
DisplayPort x 1
USB 2.0 Typ B x 1
RS232 over 3.5mm Adaptercable x 1
|
DisplayPort x 1
USB 2.0 Typ A x 1
RS232 over 3.5mm Adaptercable x 1 |
|
RJ45 Connector
|
RJ45 x 1
|
|
Power Supply
|
DC 5V 2A
|
DC 5V 2A
|
|
Power Consumption
|
max. 5 W,
Power Saving Mode 1 W
|
max. 6 W,
Power Saving Mode 1 W
|
|
Temperature
|
Operation: -10 to 45℃, Storage: -30 to 70℃, Humidity: up to 95%
|
|
Dimensions mm
|
109,6 x 109,4 x 30 (mm)
|
109,6 x 109,4 x 30 (mm)
|
|
Weight g
|
265
|
265
|
B2B Product - Designed for use in a commercial environment.
