3-PC 2-Monitor 4K144Hz DP+DP KVM-Switch with 4x USB 3.0, KC-KVM302DP
3-Port 2-Monitor 4K144Hz DP+DP KVM-Switch with 4x USB 3.0, KC-KVM302DP

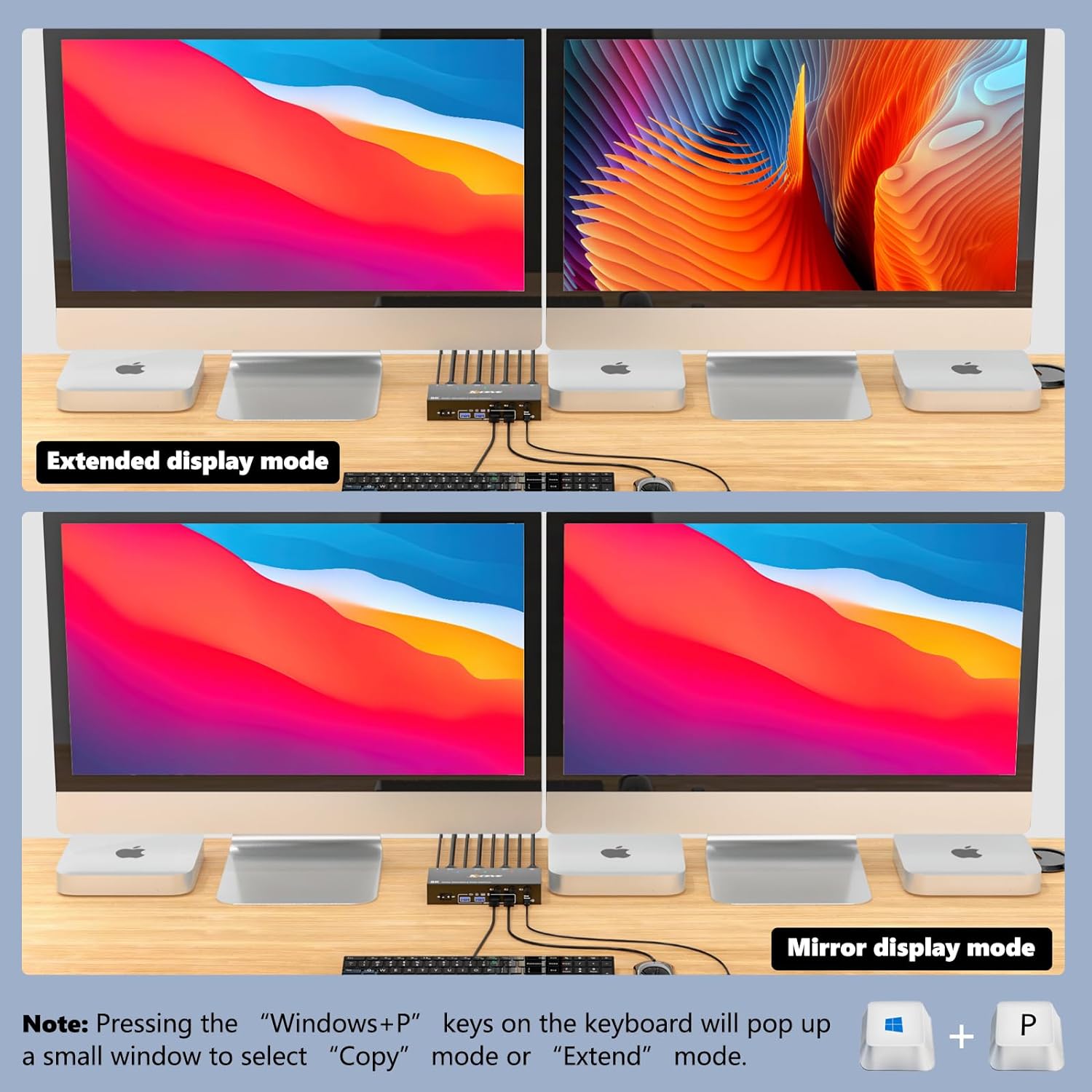

- DisplayPort KVM Switch 3 PC 2 Monitors: This DisplayPort KVM Switch can share two monitors with three PCs or laptops with just one keyboard and mouse. It can be a mirrored or extended desktop that displays information from both computers to support home office setups, gaming and streaming devices. No more problems plugging and unplugging, no more tangled cables.
- Ultra HD 8K@30Hz Resolution: This DisplayPort 1.4 KVM switch for up to 3 PCs with 2 monitors supports up to 8K@30Hz, 4K@144Hz, 2K@144Hz each and is backwards compatible with DP 1.2. NOTE: The final resolution also depends on the graphics card, monitor, cables and adapters and how they work together. To achieve the best resolution, graphics cards, monitors and cables must support 8K.
- DP KVM Switch with 4 USB 3.0 Ports: DisplayPort KVM Switch with dual monitors integrates 4 USB 3.0 ports and can recognize keyboards, mice, printers, scanners and other USB devices. USB 3.0 ports offer file transfer speeds of up to 5Gbps. If you need to use a powerful USB device on the USB port, please connect the power adapter (included) first. Otherwise, the KVM Switch may not work properly.
- Two switching methods: Switch between 3 computers with one click switch or desktop controller, save desktop space and share 2 monitors, keyboard and mouse between 3 computers. If the KVM switch is not placed on the desk, the wired controller is a good helper for quick switching. Note: Hotkey switching is not supported.

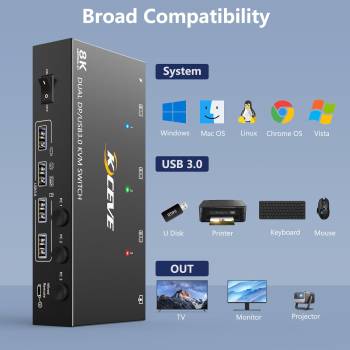

- Driver-free and strong compatibility: This KVM Switch DisplayPort supports Windows, Mac OS and Linux systems. Plug and play, no drivers required. The USB 3.0 KVM Switch is also compatible with most DisplayPort source devices such as PS5, PS4, Xbox, TV boxes, laptops, etc. When connecting a wireless keyboard and mouse, ensure that their operating range meets the distance requirements of the product.
- Package Included: 1* KVM switch, 3* USB A cable, 1* desktop controller, 1* power adapter, 1* user manual. Note: DisplayPort KVM switches do not support EDID emulation, so the desktop position may change when switching and booting. Please ensure that the resolution of the two devices at the input end and the device at the output end are consistent, and the DisplayPort cable connecting the monitor also needs to support 8K resolution.
- Product dimensions: 16 x 6.5 x 3 cm; Weight: 680g
Input ports: |
2*DP + 1*USB (applies to PC 1, PC 2, PC 3).
Desktop: the graphics card must have at least 2 DP ports;
Laptop: Requires at least 2 DP ports or used with a USB-C docking station that provides 2x DP |
Operating ports: |
2*DP + 4*USB 3.0 (for 2 monitors and USB devices).
2*DP port monitor is recommended. |
Resolution:: |
DisplayPort up to 8K at 30 Hz.
The final resolution also depends on your PC, monitor and the version and length of the DisplayPort cables. |
About power supply: |
The KVM switch can be powered via USB cables connected to the PC.
Using the included DC12V power adapter can effectively solve the problem of insufficient power supply caused by connecting high-power USB devices. |
Package contents: |
1x 2 monitors KVM switch, 3x USB 3.0 cable, 2x DP cable, 1x power adapter, 1x cable remote control, 1x user manual (English only). |
Important note: |
2 The use of the monitor KVM switch is affected by the cables. If the cable version is lower or the cable is too long, the monitor will not work.
It is recommended to use a DP1.4 cable to connect the KVM switch. The length of a single cable should not exceed 1.5 m. |
