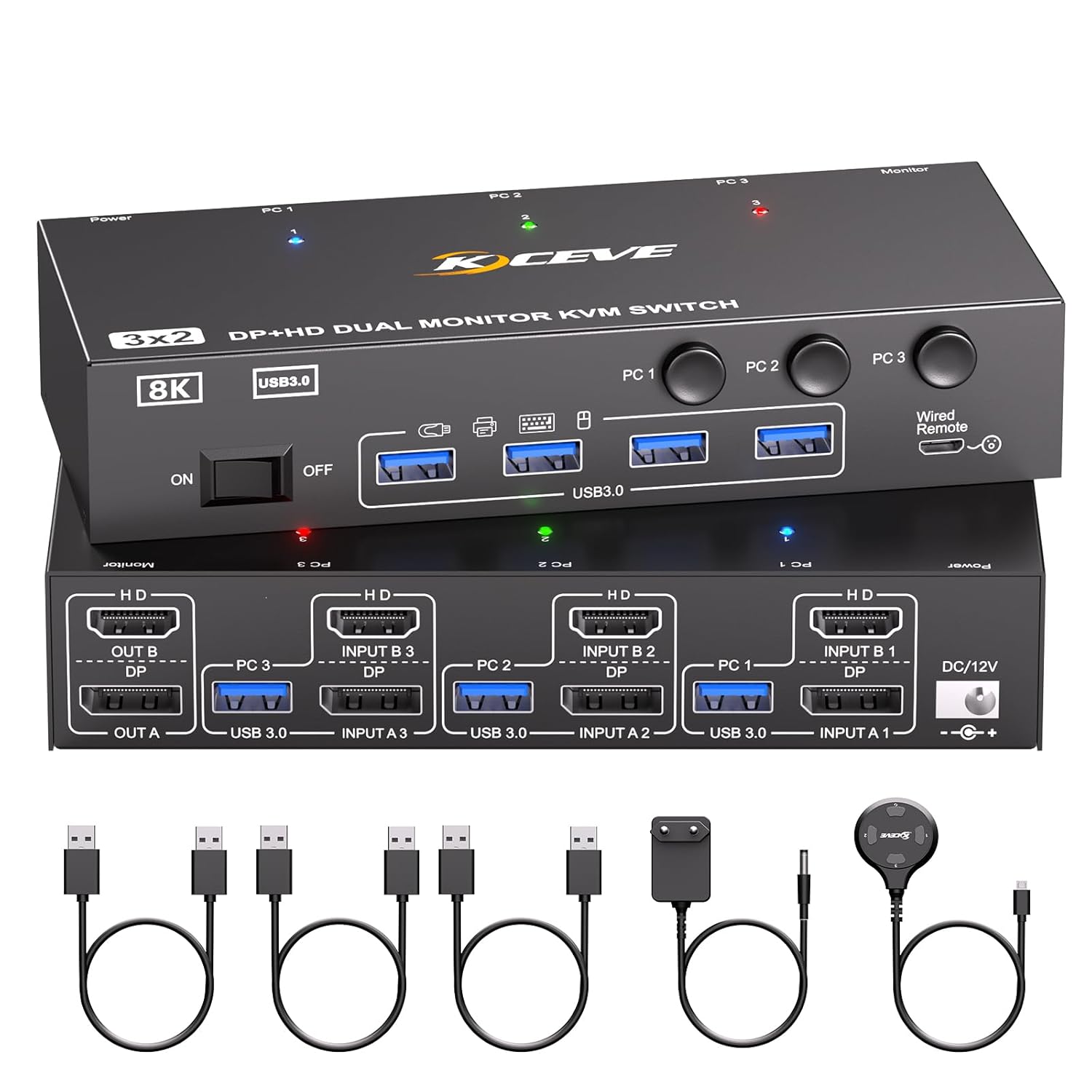

3-PC, 2-Monitor (1x HDMI 1x DP) 8K60Hz 4K144Hz KVM-Switch with 4-Port USB 3.0, KC-KVM302DH
3-PC, 2-Monitor (1x HDMI 1x DP) 8K60Hz 4K144Hz KVM-Switch with 4-Port USB 3.0, KC-KVM302DH
This dual-monitor HDMI + DisplayPort KVM-Switch supports the mutual control of three desktops or docked laptops sharing two monitors and four USB 3.0 ports (including keyboard and mouse).Switching is easily accomplished using the buttons on the KVM-Switch or the included wired remote control, which also features three buttons (for direct access).
Note: Please make sure that your computers or docking stations have at least 1x HDMI and 1x DP out each to connect them to the KVM-Switch.
- 3 computers share 2 monitors and 4 USB 3.0 devices.
- Supports wired, gaming or wireless keyboard and mouse.
- On the DP ports up to UHD 8K@30Hz, provided the cables and monitors also support this.
- Max. DP resolutions:8K@30Hz, 5K@100Hz, 4K 3840x1660@144Hz, 3440x1440@144Hz, 2K@144Hz, The final resolution depends on the monitor, graphics card and cables. Note: For high resolutions and/or refresh rates, using 8K cables (DP 1.4) and shorter or better cables solves the flickering and black screen problem.
- The HDMI 2.1 port has a video resolution of up to 8K@30Hz, 4K 3840x2160@120Hz or 2K@144Hz.
- Backwards compatible to lower resolutions. When using 4K, please ensure that your computer, monitor and all cables are 4K compatible and supported the used frequency.
- HDCP 2.3

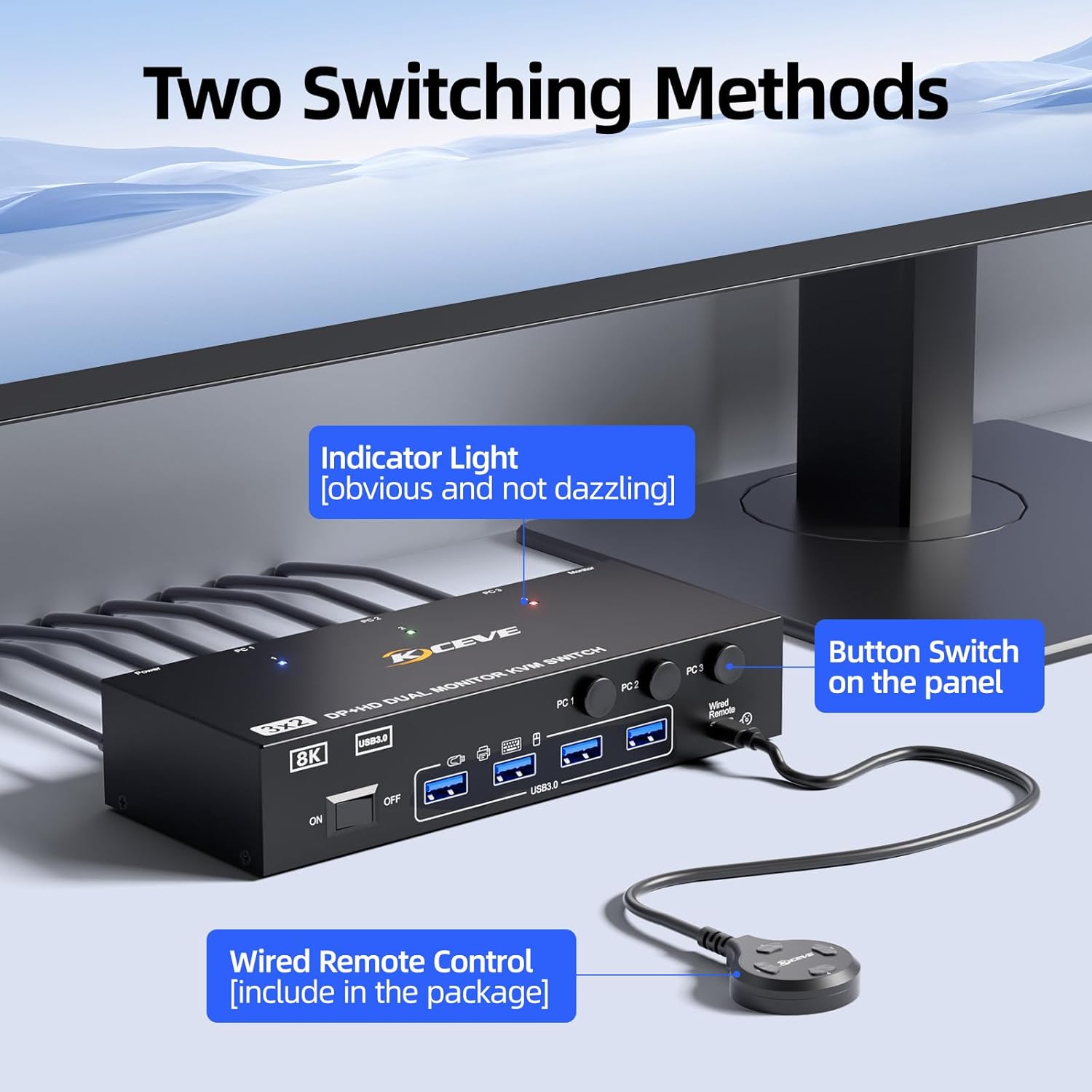

- Switching mode: button switch and wired remote.
- Both monitors and the 4x USB 3.0 are always switched to the selected computer.
- The switching time for all KVM-Switches is a few seconds, although the electronic switching takes place within milliseconds. This has to do with the monitors recognizing a new signal, switching off the image, checking it and releasing it again. The larger the monitor, the longer this time. Typically between 3 and 5 seconds.
- This KVM-Switch has an EDID pass-through and therefore automatically supports the correct monitor resolutions. Since the KVM-Switch also switches DP, which cannot be faked as being present (EDID emulation), there is no fake monitor available.

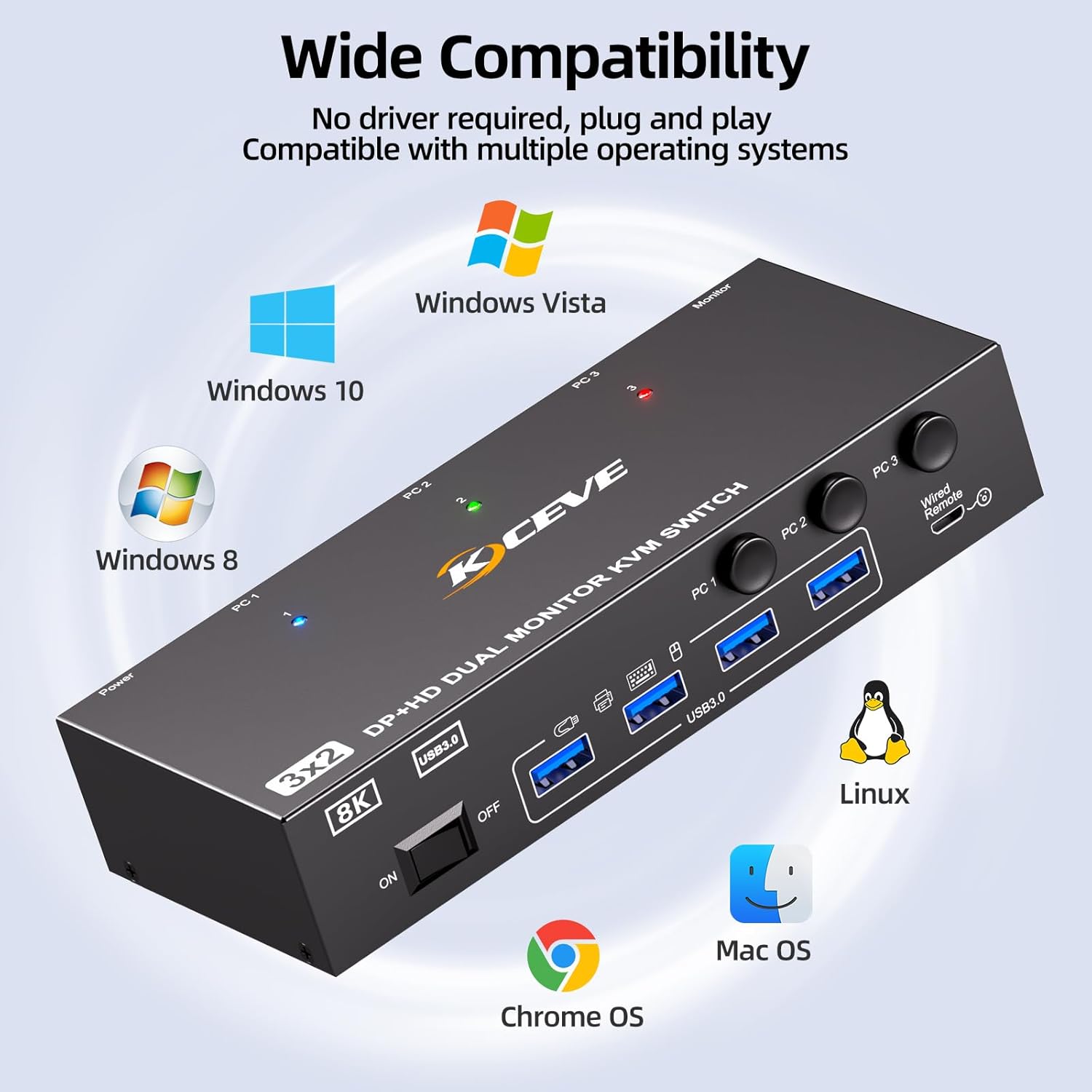

- Driver-free for Windows, Mac, Linux, Unix, Ubuntu.
- Product dimensions: :16 x 6.5 x 4.5 cm; 400 g
Technical information: You need 1x DP and 1x HDMI on each computer to switch two monitors. If necessary, you can adapt DP on the computer to HDMI to the KVM-Switch.
Please note that, for technological reasons, no adaptations can work on/from the DP ports of a KVM-Switch.
The DP level require DP (or from mDP) directly from the computers and the monitor require a DP input.
The monitor must have an HDMI input (possibly also DVI adapted) at the HDMI output.

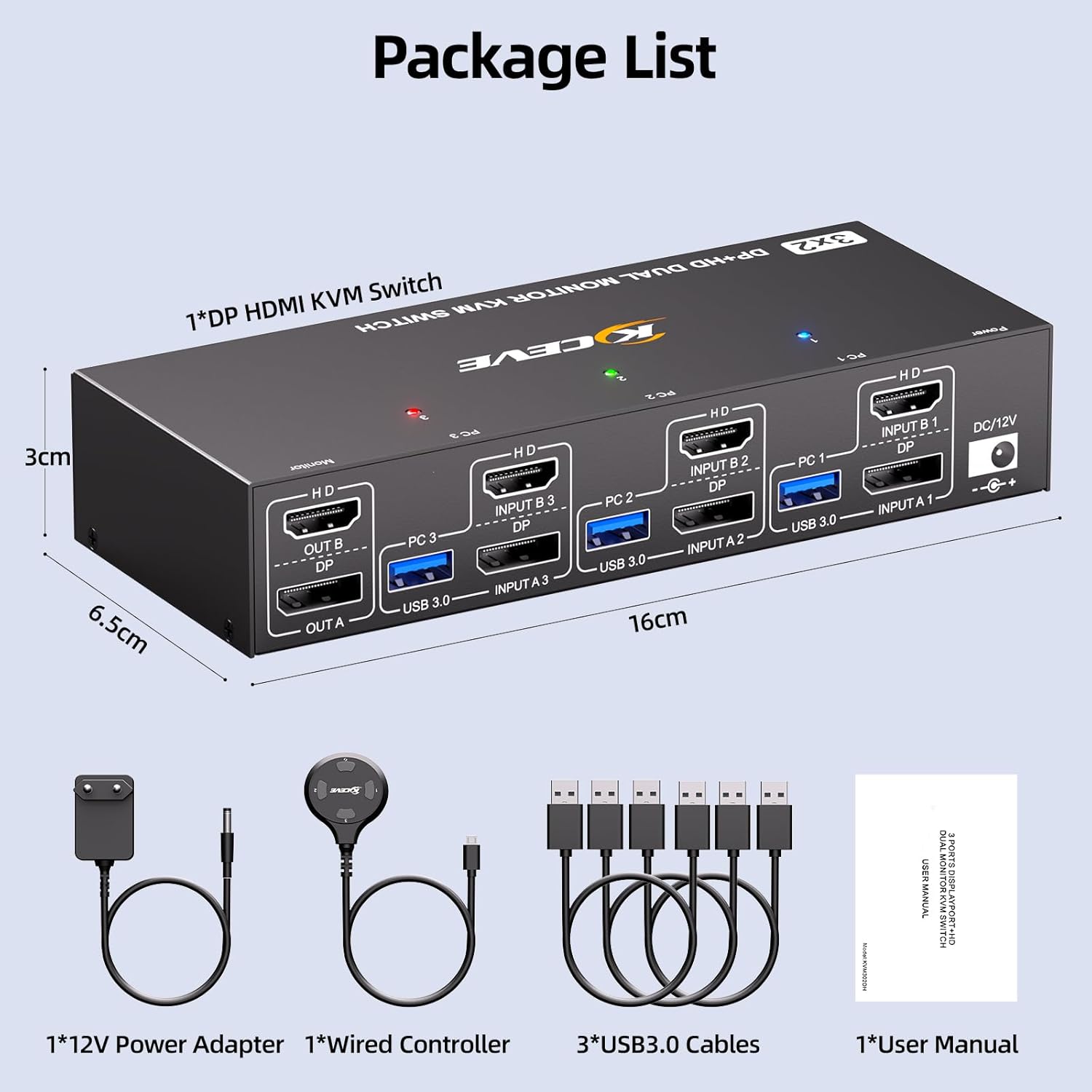

Included in delivery:
- KVM-Switch for 2 monitors
- 3 x USB 3.0 cables
- 1 x wired remote control
- 12 V power adapter
KCEVE KVM-Switch 3 PCs to 2 Monitors and 4 USB Devices

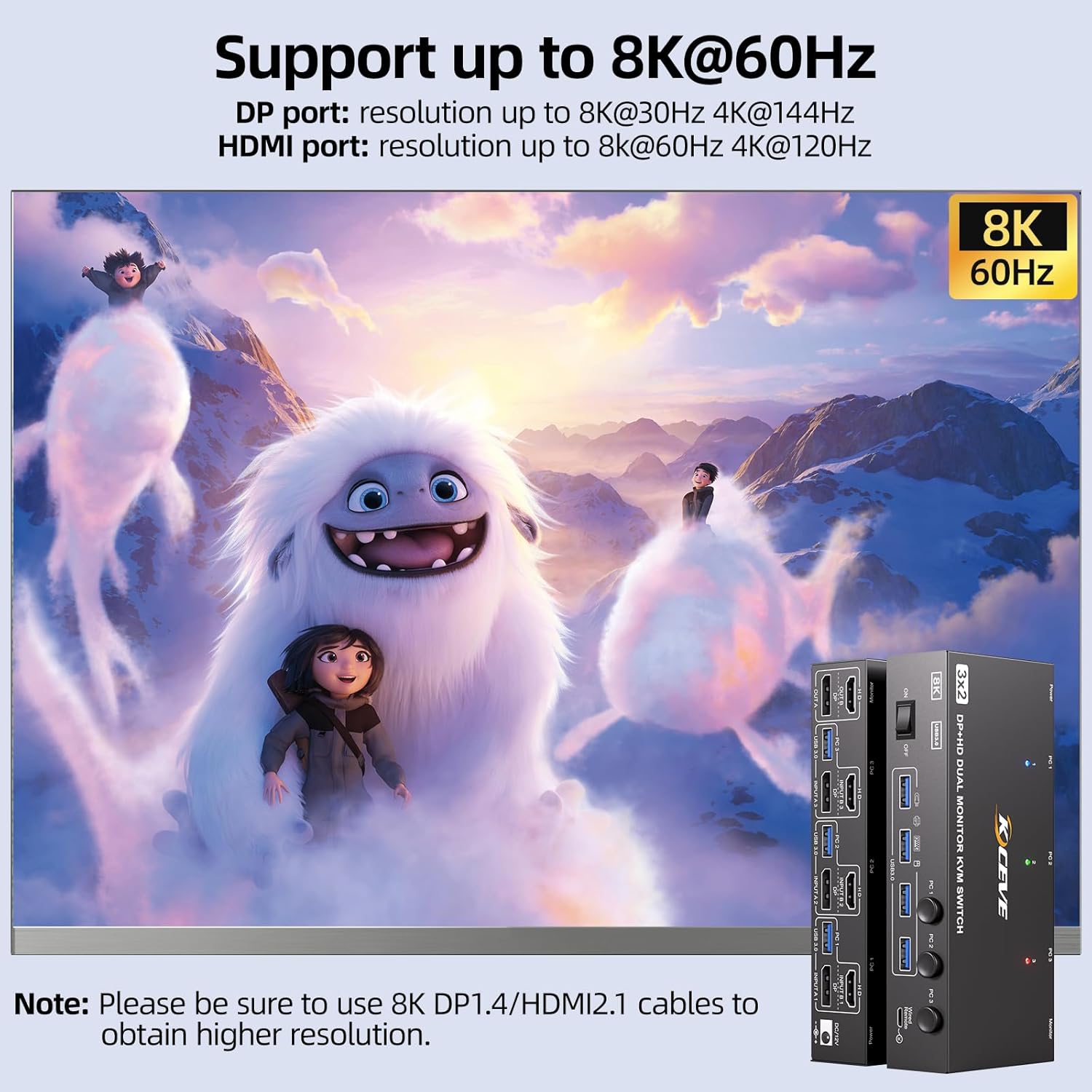

8K@60Hz UHD

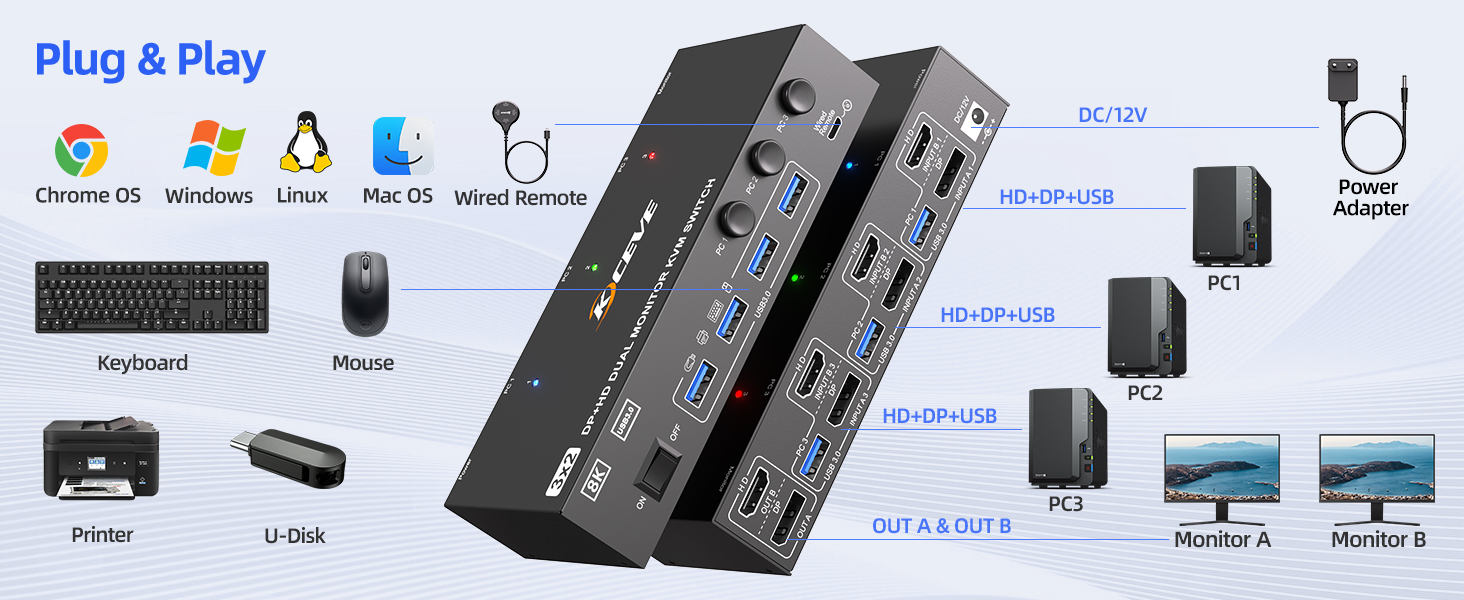

Plug and Play, no driver to install

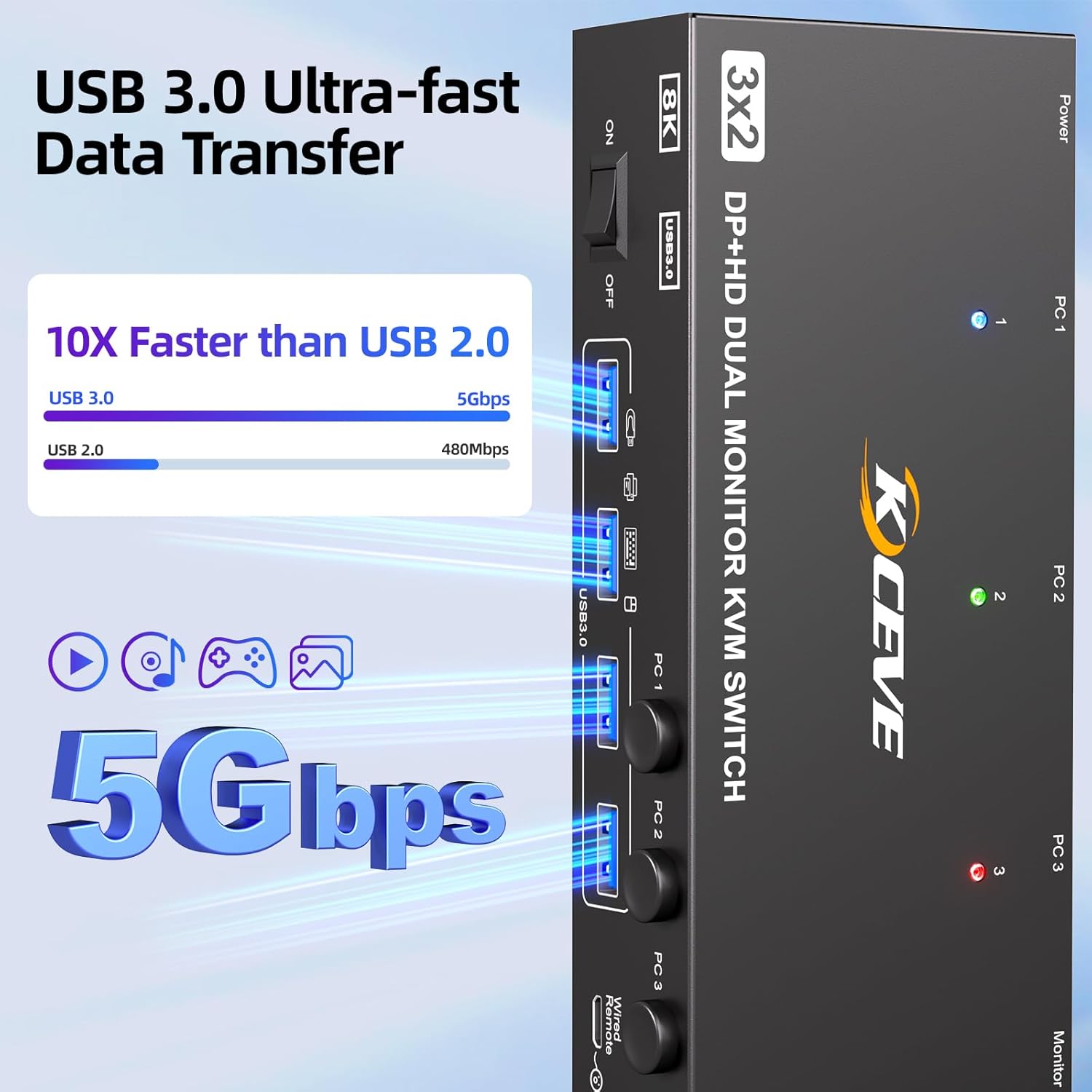

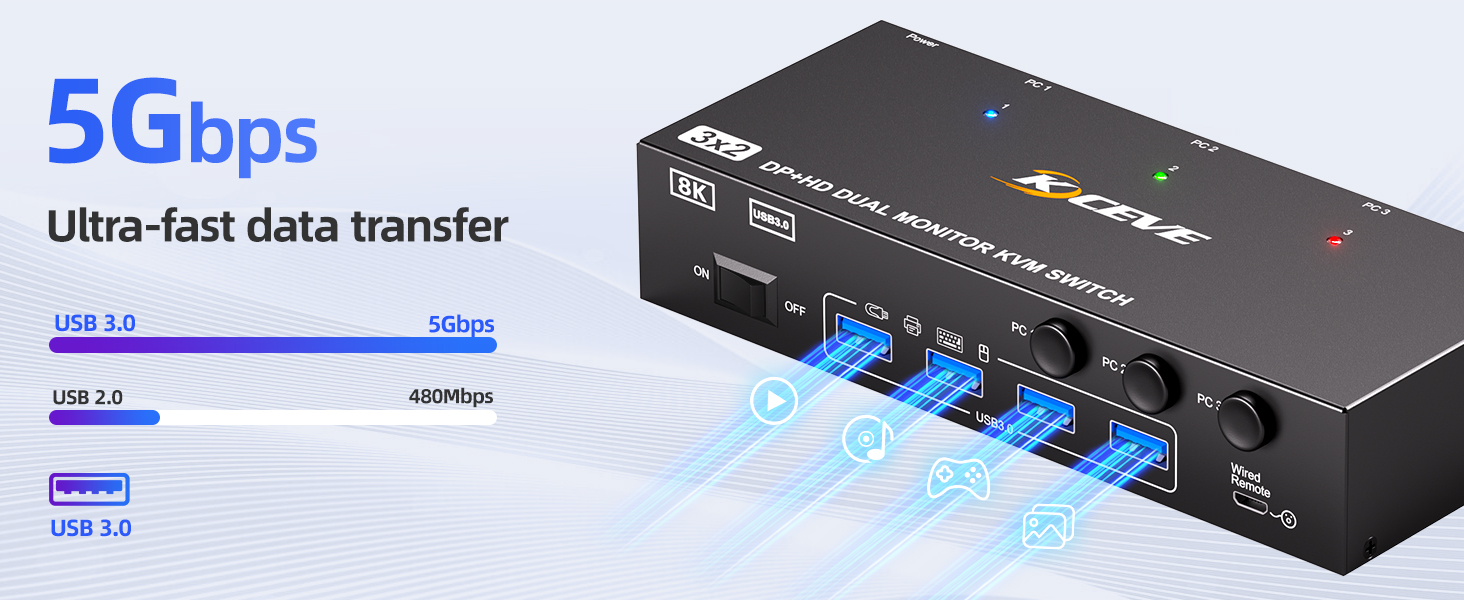

4x USB 3.0 Ports 5Gbps data transfer

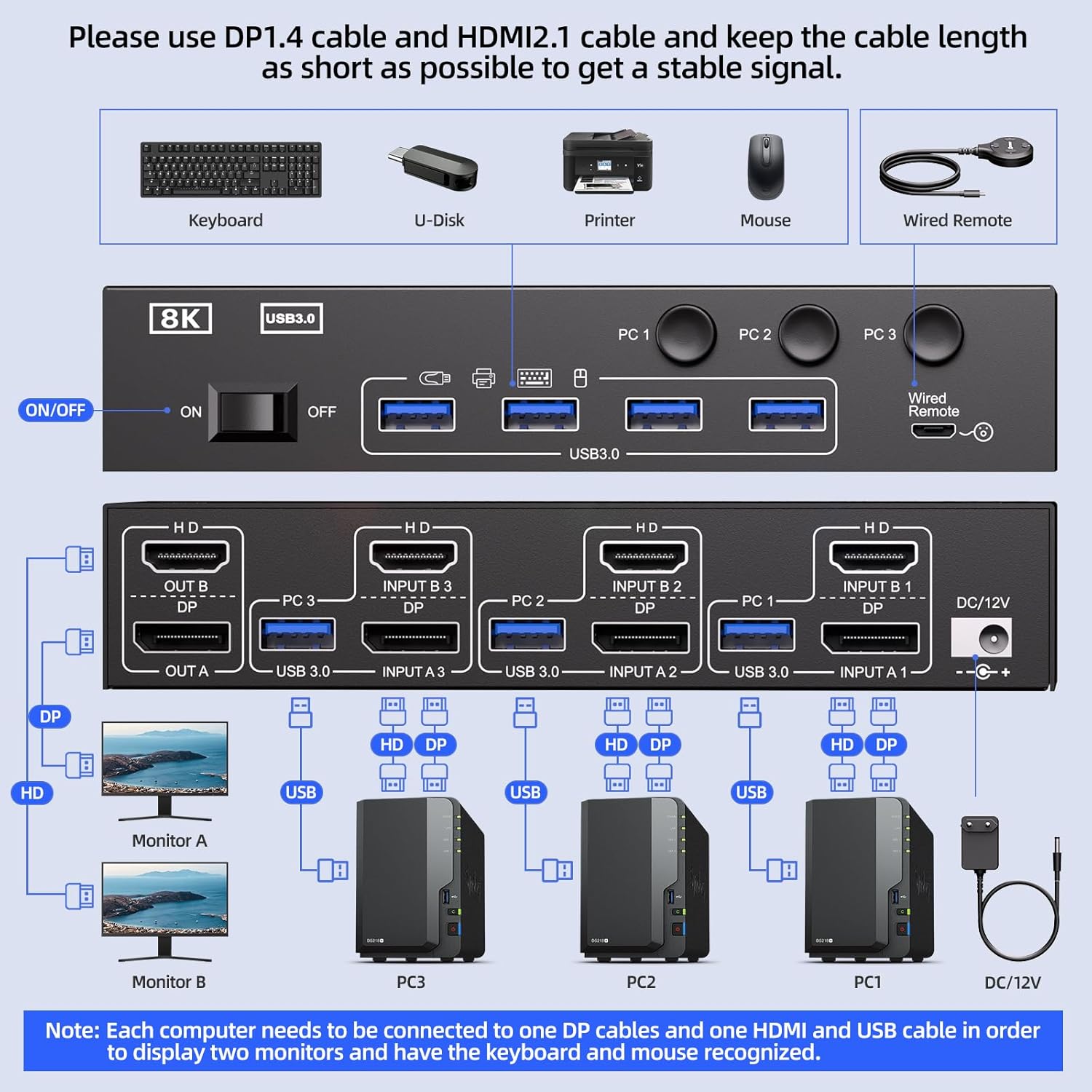

Connection diagram of dual-monitor KVM-Switch
Each computer requires 1*HDMI + 1*Displayport +1* USB cable to connect the 2 monitor KVM-Switch. Supports DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station. Please confirm whether your computer's graphics card supports 1*HDMI + 2*Displayport before placing an order. |
 |
