2m 10K HDMI-Cable m/m 10K (120Hz), 4K (240Hz) 2.1, Brackton HD10-FKB-0200.B

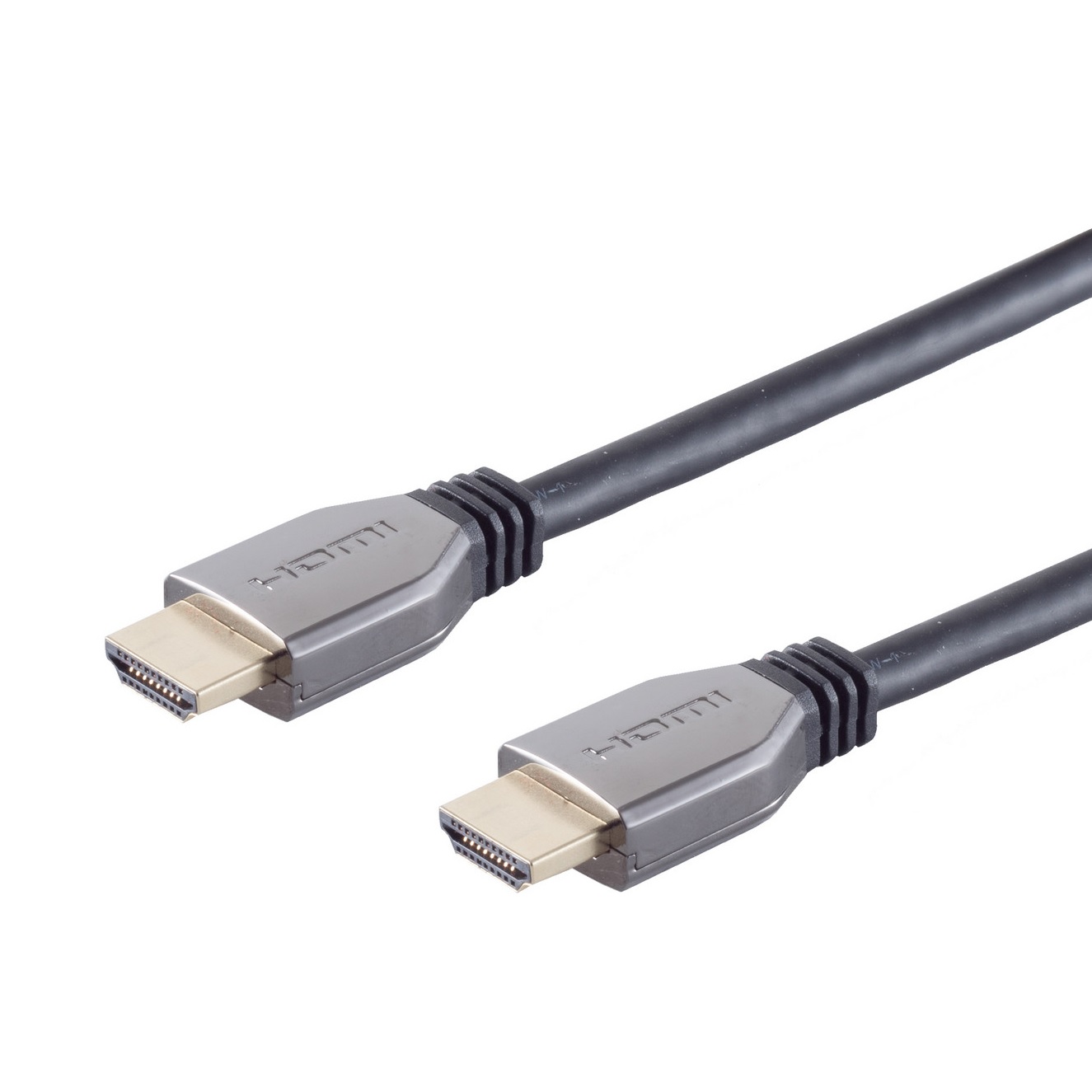

10K HDMI cable with metal connector
Ultra High Speed HDMI cables are used in the high end area.
They support a bandwidth of up to 48Gbit/s and a resolution of up to 10K.
Thanks to the high bandwidth, higher color depths and image repetition frequencies can now also be achieved.
For example, 8K image material can be reproduced in the 4:4:4 color space with a color depth of 12-bit (uncompressed). Compressed (DSC 1.2), 10K can also be transmitted in the 4:4:4 color space with 16-bit color depth.
Higher frame rates and bandwidths are more and more important in 3D, VR applications and video games.
Using the enhanced audio return channel (eARC), object-based audio formats can now also be sent over the HDMI cable.
For this purpose, the permissible bandwidth for the enhanced audio return channel has been increased from 1Mbit/s to 37Mbit/s.
Use the HDMI cable to connect your set-top box to your TV set, video projector or monitor. The cable supports all important transmission standards and has been tested by an authorized test laboratory (ATC) according to HDMI 2.1 test specification (CTS).
- Connections: HDMI (A) plug - HDMI (A) plug (19P19C)
- Resolution up to: 10K (120Hz), 8K (120Hz), 5K (120Hz), 4K2K (240Hz), 1080p (3D)
- Supports color sampling in the formats 4:4:4, 4:2:2 and 4:2:0
- Supports: Dynamic HDR, HDR10, HLG, HDCP 2.2, HDCP 2.3, 4K3D (120 Hz), Display Stream Compression 1.2, HEC, 21: 9 Cinema image format, 1080p HFR (High Frame Rate) 3D, Game Mode VRR, eARC, CEC 2.0, HDMI 2.1 Multi-channel sound systems Max.bandwidth: 48Gbit/s
- HDMI Standard: Ultra High Speed with Ethernet
- Downward compatible: to all HDMI standards
- Number of shieldings: 3-fold
- Shielding 1: ALU film laminated PIMF (5 pairs)
- Shielding 2: ALU film laminated (100% tight)
- Shielding 3: ALU braid (100% tight)
- Cable structure: AWG 30
- Cores material: Copper
- Plug: encapsulated
- Plug material: CuZnNi, gold-plated
- Contact surface: gold-plated
- Plug housing: metal
- Anti-kink protection: Yes
- Cable type: round cable Cable
- Sheath: PVC (soft PVC)
- Cable diameter (approx.): 6.3mm
- Colour: black
