USB-C Notebook and PC Dual-Monitor 4K60Hz HDMI+HDMI+USB3.0 KVM-Switch with wired Control, KCEVE KC-KVM202CH

This is an inexpensive and very powerful USB-C and dual HDMI KVM switch for a notebook with USB-C (DP-Alt graphics capable) output and a computer with 2x HDMI (can be adapted to a PC from DP with 4K60Hz chipset),  to operate keyboard, mouse and two monitors alternately.
The notebook only needs to be connected via USB-C so that 2 external (up to each 4K60Hz or 2K144Hz) monitors can be displayed in “Extended Desktop” mode.
If a USB-C charging power supply that matches the notebook is plugged into the PD port of the KVM switch, the notebook will also be charged via just one USB-C cable to the switch.
There are also 4x USB 3.0 and 1 x USB-C Gen3.1 (data only up to 5 Gbps) for peripheral devices such as keyboard/mouse, USB sticks, printers, etc.  switched with.
The PC is connected with 2x HDMI and the included USB cable (standard A to the PC to B to the switch).  If the PC only has one or no HDMI output, you can work with DP-to-HDMI cables.

• Dual Monitor KVM Switch: This dual monitor USB-C and dual HDMI + USB3.0 KVM switch can switch between a notebook and a computer with a set of USB keyboard and mouse and two monitors (in the extended desktop).
• Enjoy high-quality viewing* with up to:
• 4K x 2K (3840 x 2160@60 Hz)
• 1440p: 2560 x 1440@144 Hz / 120 Hz / 60 Hz;
• 1920x1440 @ 144Hz / 120Hz / 60Hz;
• 1920x1200 @144Hz / 120Hz / 60Hz
• No EDID emulator function: It is possible that the window positions change when switching. Only Windows 11 has a “Remember window positions” function. However, this ensures that the computer always displays the correct resolutions when switching back. Compatible with a variety of computer systems, such as Windows, Mac OS, Linux, Chrome OS.
• 1 x USB-C to the notebook: The notebook is only connected via USB-C so that 2 external (up to 4K60Hz or 2K144Hz) monitors can be displayed in "Extended Desktop" mode.
• If a suitable USB-C charging power supply (up to 60 watts) is plugged into the PD port of the KVM switch for the notebook, the notebook will also be charged via just one USB-C cable to the switch.
• 2x HDMI input to the computer + 2x HDMI output: This dual-monitor HDMI KVM switch allows the user to alternately operate 2 computers via a single keyboard, mouse and two 4K monitors.
• With 4 USB 3.0 USB Ports up to 5Gbps: this 2 in 2 out DP KVM USB 3.0 switch with 4 USB 3.0 port for sharing mouse, keyboard, USB printers, scanners, etc,. USB 3.0 transmission is more stable and faster, if you are looking for a USB 3.0 version KVM switch this will be a good choice!
• Supports 2 switching modes: supports physical buttons and wired control. Only if your computer supports dual display or multi-display, you can use this HDMI KVM switch to reach two computers to share two monitors, please choose the Extend mode or Copy mode in your computer【Windows+p has options】
• Only when your computer supports dual display or multi display, you can use this HDMI KVM switch to achieve two computers to share two monitors, please choose extended mode or copy mode in your computer.
• Please note that this and all other dual-monitor DP KVM switches can only switch 2 monitors if each computer has 2 x HDMI out (or USB-C with DP Alt Mode adapted). The monitors also require direct DP inputs. You cannot adapt HDMI, DVI or VGA to a KVM switch or a monitor.

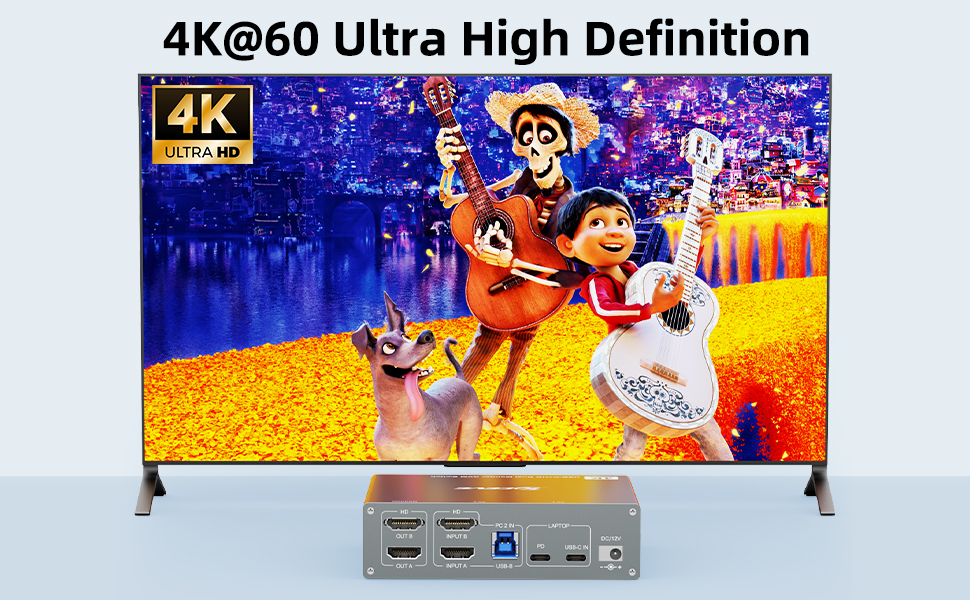

• Ultra HD 4k Visual Enjoyment: support high resolution of 4K@60Hz, please use DP 1.2 cable to use 4k@60Hz resolution. Note: if need 4K resolution, please use HDMI 2.0 cables and make sure the computers and monitors all support 4K.
• Connecting the external power supply is not always necessary. However, it is recommended so that the HDMI transmission works more stable. We recommend using the 12V power supply included in delivery. If USB devices with high power consumption (scanners, etc.) are connected, the power supply must be connected.
• Plug and Play: Plug and play, drive-free, widely used in many occasions, such as office, conference, teaching, performance, live broadcast, home theater, etc.

USB-C + PC Dual-Monitor KVM-Switch

• Resolution range: Up to 2x 4Kx2K@60Hz 4K Ultra HD 2160p 3840x2160 Pixel with 4:4:4 color depth.
• Also suitable for 2K 1440p 2560x1440 pixel monitors.
• 1x "USB-C in" to the Notebook.
• 1x "USB-C PD-Port (Power delivery) for connecting a charging adapter suitable for the notebook to the KVM switch.
• 2x HDMI in to computer (or adapt from PC with 4K60 Chip-adapter).
• Both monitors must be connected with HDMI.
• No EDID monitor simulation = content jumps when switching.  Only with Windows 11 does the content (remember monitor positions) jump back again.
• USB speed: 5 Gbps with 4x USB 3.0 to operator (3x USB-A and 1x USB-C Gen 3.1 "data only")
• Control way: physical button control and wired control.
• Keyboard switch way: Not supported
• Cable Range: max. 3m recommended
• Plug-and-Play, no driver required

Please note:

1. This and all other dual-monitor HDMI KVM switches can only switch 2 monitors if the computer has 2 x digital outs. From DP, mDP, USB-C or DVI you can adapt to HDMI to the KVM switch. Not from/to VGA.
2. The USB-C of the notebook must support DP Alt Mode. Very inexpensive notebooks, older notebooks and tablets may only support data transfer via their USB-C outputs. If the notebook is suitable for USB-C docking stations, it is also suitable for this KVM switch.
3. That the integrated docking station works with the MST standard (PC world). If you connected a MacBook, the identical image would only be displayed twice.
4. *The achievable resolutions require a corresponding USB-C performance of the notebook and corresponding monitors, as well as correspondingly high-quality and short cables.
5. This USB 3.0 version dual monitor KVM switch is suitable for 1 notebook and a computer sharing 2 monitors, keyboard, mouse and USB devices. Please connect all cables so that the two displays work properly.
6. Two HDMI inputs for HDMI devices such as computers, laptops, TV boxes, DVDs, PS5/4 etc. Please note that when the PS console is connected, the mouse and keyboard cannot control the game via the KVM switch.
7. The updated USB 3.0 version ensures faster and more stable data transfer. This is a great solution to solve many USB device disconnection issues during use.
8. We recommend connecting the external power supply to provide sufficient power. The 12V DC charging power supply is included.
9. With Bluetooth mouse and keyboard, there is a delay of a few seconds after each switch until Bluetooth is logged in and started again by the computers. We do not recommend using Bluetooth mouse and keyboard.
10. Supports physical button control and wired control.  Please note that this model does not support keyboard hotkey switching.

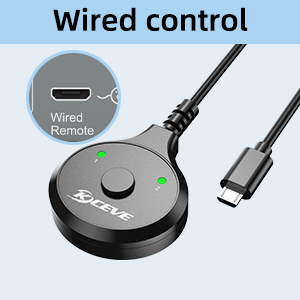

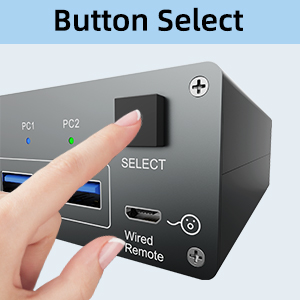

Wired remote control The wired remote control is a convenient method of switching.  A 1.5m wired button controller is included.		Switching via button on the KVM switch Switching via button on the KVM switch gives you quick access to the other computer.

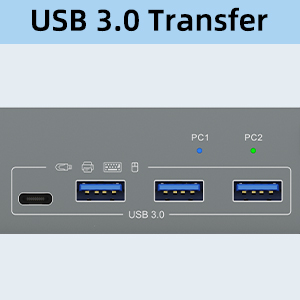

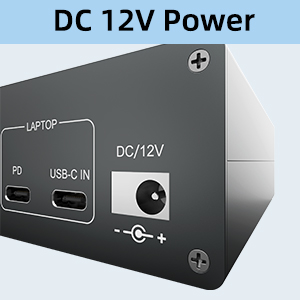

With 4 USB 3.0 ports for 2 computers sharing USB devices USB 3.0 ports for connected USB devices such as mouse, keyboard, USB printer, scanner, etc. 4x USB 3.0 with up to 5Gbps to the operator (3x USB-A and 1x USB-C Typ 3.1 data only).		DC 12V power supply included A DC 12V power supply is usually required as the USB cable power supply is not enough.
		Enjoy a high quality viewing 4K x 2K (3840 x 2160@60 Hz); 4K x 2K (2560 x 1600@60 Hz); 4K x 2K (2048 x 1536@60 Hz) 2560 x 1440@144 Hz / 120 Hz / 60 Hz; 1920 x 1440 @ 144 Hz / 120 Hz / 60 Hz; 1920 x 1200 @144 Hz / 120 Hz / 60 Hz



Packing List

• 1x USB-C cable (1.5m)
• 1x USB 3.0 cable (1.5m)
• 1x wired remote control (1.5m)
• 1x 12V/DC power supply
