2-Port 4K to 144Hz dual monitor DP+DP USB3.0 KVM-Switch with wired remote control, KC-KVM202DPU
2-Port 4K to 144Hz dual monitor DP+DP USB3.0 KVM-Switch with wired remote control, KC-KVM202DPU
This 4K to 144Hz split + dual monitor DisplayPort + cable remote control KVM-Switch with audio output and USB 3.0 supports switching from PC 1 and PC 2 and also a separate switchover.Use cable remote control or buttons on the KVM-Switch, whether you want to switch:
a) both monitors, audio and USB 3.0 completely.
b) only want to switch the audio.
c) only display one monitor from each PC and then want the USB (with keyboard/mouse) on the left PC or the right PC.
- Digital Audio-Extractor: 3.5mm audio extractor input and output, which can be manually pressed to select the sound source from PC1 or PC2.
- This DisplayPort KVM-Switch 2 computers 2 monitors perfect for hooking up 2 desktops or laptops to share one set of wired or wireless keyboard mouse and 2 monitors
- 4K@144Hz Ultra HD: Ultra HD 8K@30Hz/4K@144H: KVM Switch DisplayPort Dual Monitor support resolution up to 8K@30Hz, 4K@144Hz (3840x2160@144Hz), 4K@120Hz, 4K@60Hz, 2K@144Hz, 1080P. Backwards compatible with lower resolutions.
- Supports DP 1.4 (without DP Alt Mode and MST) and lower standard protocols per monitor, HDCP: 2.2, YUV: 4:4:4.
- KVM-Switch DisplayPort with DC 12V power adapter.

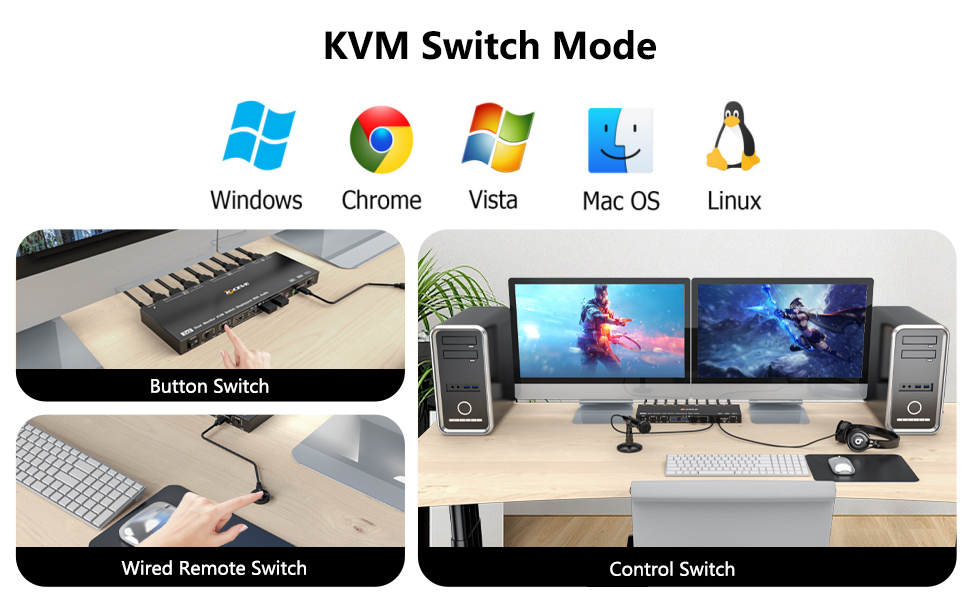

- Support several switching methods: Press the button on the KVM switch panel or the 1.5m long cable remote control. LED lights indicate which computer is active.
- If the KVM switch is on the "KVM" fashion, you can switch both monitors and USB to the desired PC with the "Select" button (or remote remote control).
- If the KVM switch is on the "USB" fashion, a monitor is displayed per PC and you can switch the USB to the desired PC with the "Select" button (or remote cable farming).
- The analog audio output is assigned separately via the "Audio" button.
- Dimensions: only 23.8 x 8.1 x 2.1 cm, weight: net 406g, packaging including accessories: 980 g
Note: For technological reasons, DP adapters and DP adapter cables only work directly on the DP graphics cards, as they have a chipset integrated into them that tells the multi-signal-capable DP graphics card to send an HDMI protocol. However, any normal DP KVM switch can only transmit the DP protocol. So an HDMI adapter behind a KVM switch has no function.
Steps to connect a dual monitor KVM switch with Displayport
This DP KVM switch has DP + USB ports for 2 computers. In order not to affect the extended display functions, each computer requires 2 DisplayPort cables + 1 USB cable for connecting KVM switches.
- Step 1: Connect 2 DisplayPort cables + 1 USB3.0 cable between Computer 1 and KVM switch (USB 1, INPUT A1, INPUT B1).
- Step 2: Connect 2 DisplayPort cables + 1 USB3.0 cable between Computer 2 and KVM switch (USB 2, INPUT A2, INPUT B2).
- Step 3. Connect two DisplayPort cables between the KVM switch (OUT A, OUT B) and two monitors.
- Step 4: Connect your USB device (keyboard and mouse) to the USB port of the KVM switch. You can connect up to 4 USB 3.0 devices at the same time. Compatible with USB 2.0/1.1 devices.
- Step 5. Plug the wired remote control into the “SELECT” port to switch freely between PC1 and PC2.
.jpg)
Package contents:
1x DP KVM switch
2x DP cable (approx. 1.5m) up to 60Hz, 2 additional cables to the computers are optional
2x USB 3.0 cable (approx. 1.5m)
1x cable remote control
1x 12 V DC power supply
1x user manual (English)
The most detailed instructions for all new KVM functions are included in the manual.
If you have any questions, please feel free to contact us. We offer you lifetime professional technical support.
