10-Port HDMI+USB3.0 KVM-Switch 4K60Hz with EDID-Simulation incl. Cable-Remote-Control, KCEVE KC-KVM1001A
10-Port HDMI+USB3.0 KVM-Switch 4K60Hz with EDID-Simulation incl. Cable-Remote-Control, KCEVE KC-KVM1001A
This 10-port desktop KVM switch (more than the overly over 8 port) can control up to 10 servers/PC via only one control console.
Operation is via an LCD console or via a monitor (HDMI) and 4 USB devices (keyboard/mouse, printer, etc.).
The KCEVE KC-KVM1001A is characterized by:
Operation is via an LCD console or via a monitor (HDMI) and 4 USB devices (keyboard/mouse, printer, etc.).
The KCEVE KC-KVM1001A is characterized by:
- Extremely high reliability at an extremely low price.
- High specifications (4K60Hz and USB 3.0).
- An EDID monitor pretense.
- Digital port display on the switch.
- 10 buttons for direct dialing of the wew. Servers.
- Included cable remote control.
- Digital port display on the cable remote control.
- 10 buttons for direct dialing of the wew. Servers on the cable remote control.
- Control via RS232 possible.
- Digital audio extractor to 3.5mm analog.
Features:
- HDMI with EDID Simulation: The 10 Server/PC HDMI KVM switch can simulate the display's EDID when the monitor is switched between 10 computers. The original window position is not changed. Press and hold the "1" button for 3 seconds to turn the EDID emulation function on/off as needed.
- Ultra-HD 4K@60Hz: This 10-port USB 3.0 KVM switch with HDMI supports an HDMI resolution of up to 4K@60Hz and is backward-compatible with e.g. 4K@30Hz , 2560* 1440@120Hz. The 4K KVM switches also work with ultra-wide monitors up to 3840 pixels.
- USB3.0: With four USB 3.0 ports (1*USB-C+1BS) for keyboard, mouse, printer, memory stick, and other USB peripherals. It supports ultra-fast USB 3.0 data transfer with up to 5Gbps, 10 times faster than USB 2.0. Transfer files in seconds and make it easier to work on the servers.
- Great compatibility: plug-and-play. Driver free for Windows, Mac OS, Linux and Chrome. Compatible with most HDMI devices such as desktop, laptop, PS5, PS4, TV box, suitable for office, server room, lessons, etc.
- Three Shift Options: This 10-port HDMI KVM switch supports three switching modes: Frontp anel buttons, included cable remote control, and RS232. LEDs display the active computer. Buttons (1-10 corresponding to 10 pcs), wired remote control (length: approx. 1.5m, with digital display included) and RS232 (please use with baud rate: 115200).
- Power adapter and ON-OFF switch: The included 12V/2A power adapter ensures smooth operation and provides stable detection when connecting high-performance USB devices. If you are not using the KVM switch, simply turn it off without disconnecting the cables.
- Digital audio extractor : 3.5mm analog out. Of course, HDMI audio, if the monitor has integrated a speaker.
- Compact dimensions: 24 x 8 x 3 cm
- Desktop metal housing = no 19" mounting possible).
Scope of delivery:
- 10-Port KVM Switch
- 10 * USB 3.0 cable (approx. 1.5 m)
- 1 * Cable remote control with port display and 10 buttons (approx. 1.5 m)
- 1 * 12V/2A Power Adapter( EU)
- 1 * User manual (English only)
With this USB 3.0 HDMI KVM switch, you can connect up to 10 laptops or desktops (PS4/PS5, Raspberry Pi, etc.) simultaneously and share 1 monitor and 4 peripheral USB devices. Supports video devices with HDMI, USB C, Displayport, DVI or (via converter) VGA ports.
Important information about cabling:
An HDMI cable is still required per server/PC.
If a server/PC only has DP out, a 4K60Hz chipset cable is required for the KVM switch.
If the server only has DVI-I (24+5) ot, a DVI-to-HDMI adapter cable to the KVM switch is required
A server with VGA can only be connected via an active converter, the image quality is impaired.
In addition 1x USB (included) to each server/PC.
If a server/PC only has DP out, a 4K60Hz chipset cable is required for the KVM switch.
If the server only has DVI-I (24+5) ot, a DVI-to-HDMI adapter cable to the KVM switch is required
A server with VGA can only be connected via an active converter, the image quality is impaired.
In addition 1x USB (included) to each server/PC.
Supports three switching modes:
1. Wired remote control (length: approx. 1.5m, with digital screen display, included)
2. Panel buttons (1-10 according to 10 pcs)
3. RS232 (please use at Baudrate: 115200). No control software available.
EDID Simulation: The window position remains unchanged during switching.
You can turn the EDID emulation function on and off if necessary.
You can turn the EDID emulation function on and off if necessary.
 |
 |
 |
 |
|||

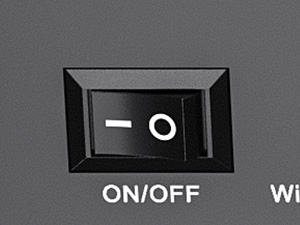

ON/OFF switchReboot KVM switches with one click without having to pull cables back and forth and plug in. |

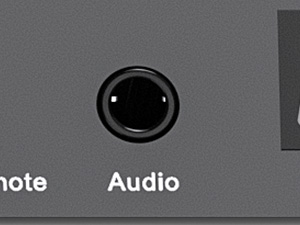

3.5mm audio socketNot affected by wireless signal interference, stable transmission, can connect headphones, earplugs, speakers and other devices. |
EDID simulationThe 10 PC KVM switch can simulate the EDID of the display. When switching between 10 pcs, the original window order is not changed. |

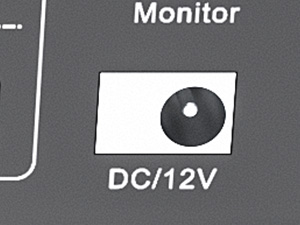

12V/2A Power Supply (EU)Ensures that the KVM switch works more smoothly and stably when using powerful USB devices. |
System Requirements
One HDMI and one USB port per PC or server.
Note: A 4K 60Hz adapter cable or adapter can be used to connect a PC or server's DisplayPort to the KVM switch's HDMI port.
The monitor requires an HDMI input. Adaptation is not possible at the monitor itself.
Note: A 4K 60Hz adapter cable or adapter can be used to connect a PC or server's DisplayPort to the KVM switch's HDMI port.
The monitor requires an HDMI input. Adaptation is not possible at the monitor itself.
