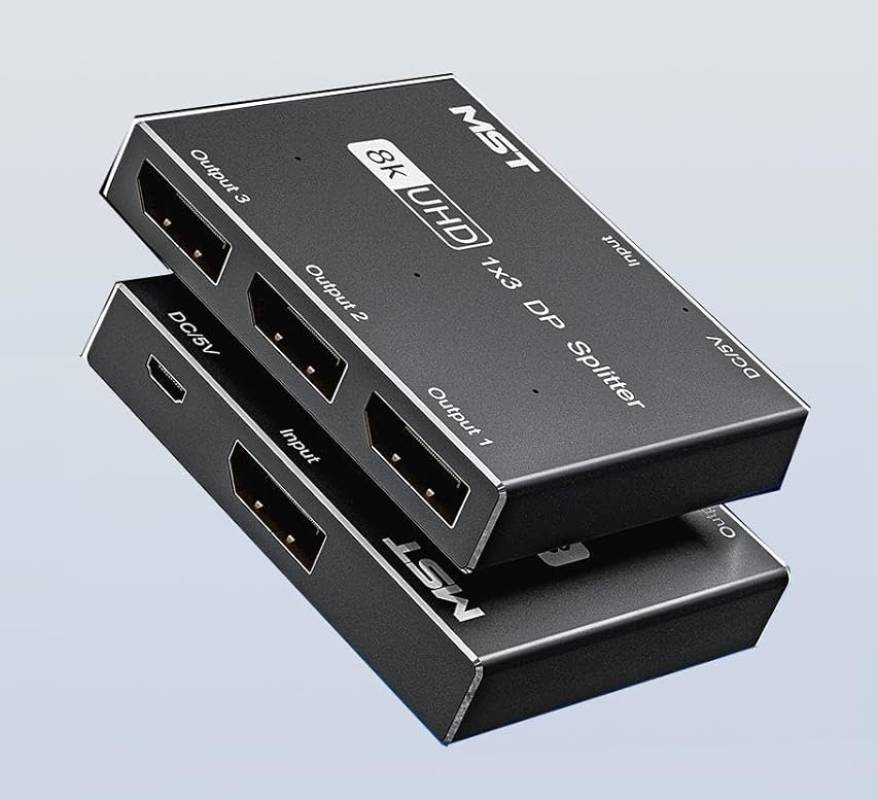

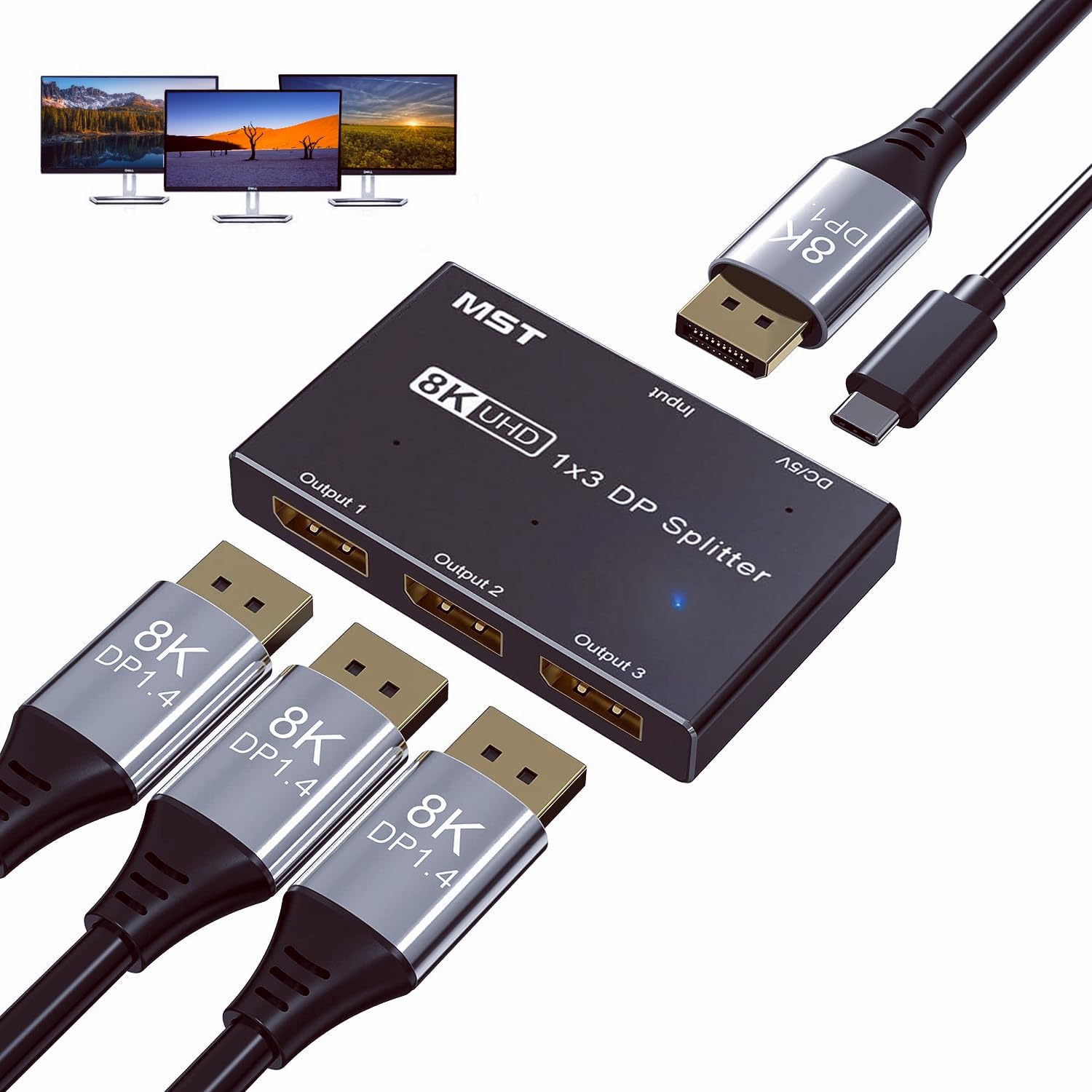

1-in-3-out DisplayPort DP 1.4 MST-Splitter-Vervielfacher 8K@30Hz 4K@144Hz, KCEVE KC-MSTD13

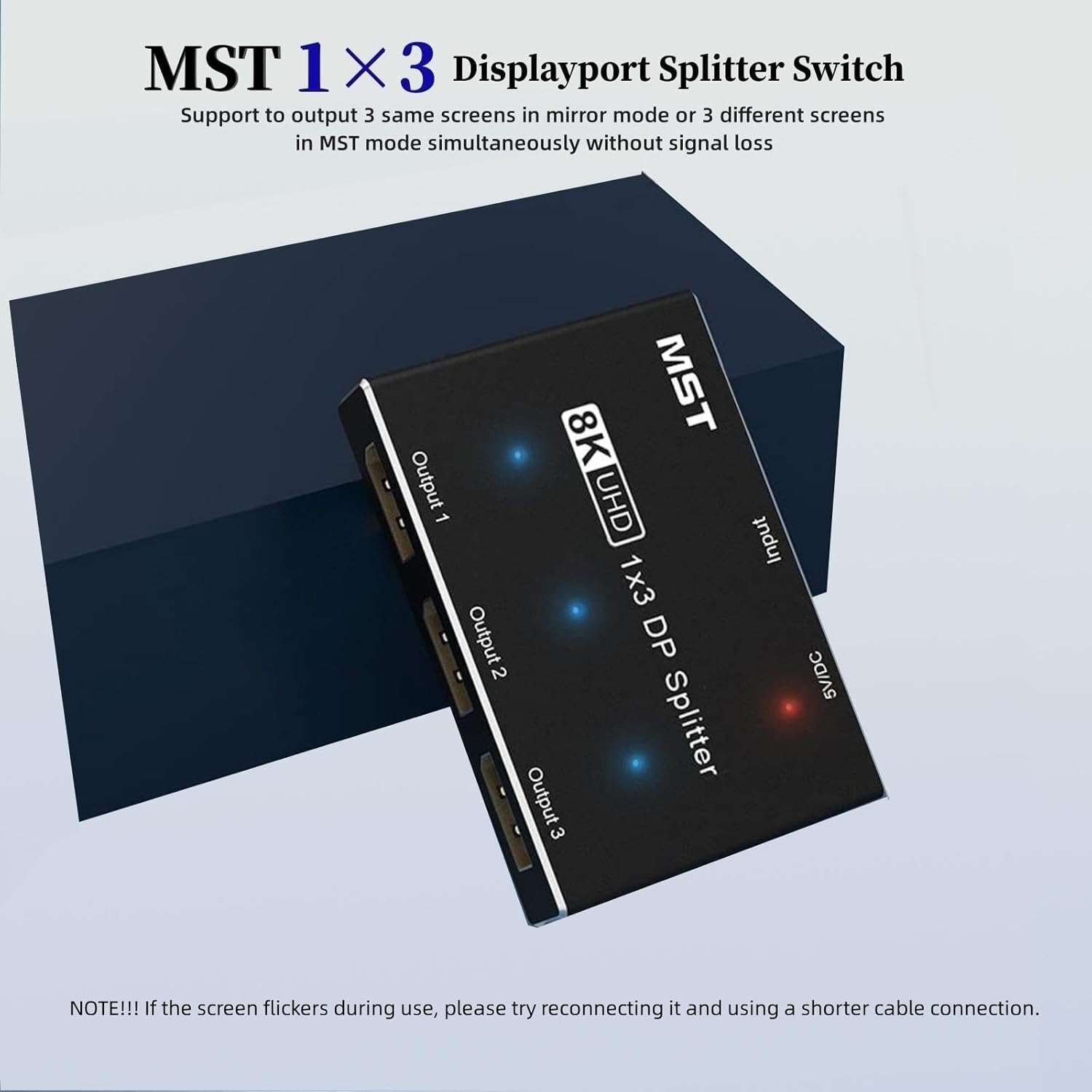

This 1 in 3 out Displayport Splitter allows the simultaneous output of 3 identical screen contents in mirror mode or 3 different screen contents (Advanced Desktop) in MST mode without signal loss.
ATTENTION:
a) The MST extension works, technologically conditioned, only directly at DP graphics card outputs.
b) Adaptations from/to HDMI etc. are not possible, technologically conditioned.
This small 1x3 DP splitter is compact and efficient.
- Ultra HD 8K 8K 8K 8K@60Hz, 5K@60Hz, 4K@144Hz, 4K@144Hz, 4K@120Hz, 1440P@165Hz, 1080P@240Hz, 1080P@240Hz
- NOTE: We recommend that the DP cables at both ends, i.e. the sum of the input and output cables, should not exceed 3 meters. At a length of more than 3 meters, the signal may be delayed or shielded. Also, only DP 1.4 cables should be used if you want to transfer more than 4K60Hz.

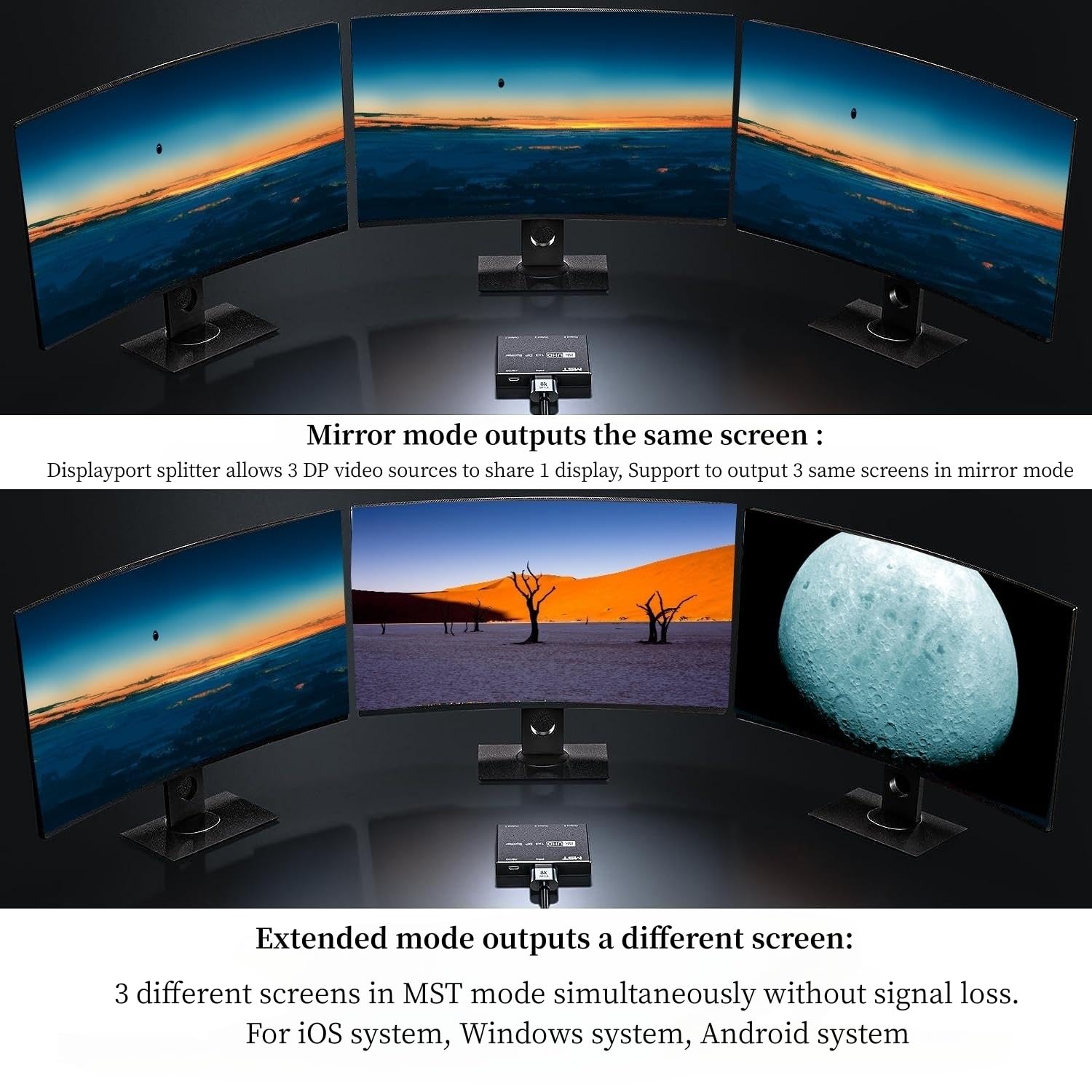

- SST mode: This display port switch supports the mirrored output in SST mode. SST mode outputs the same screen content up to 3x.

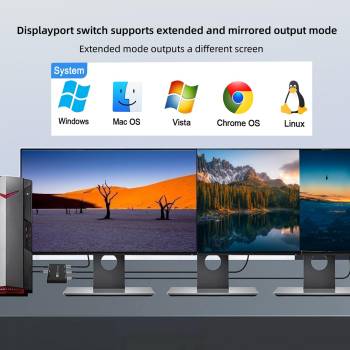

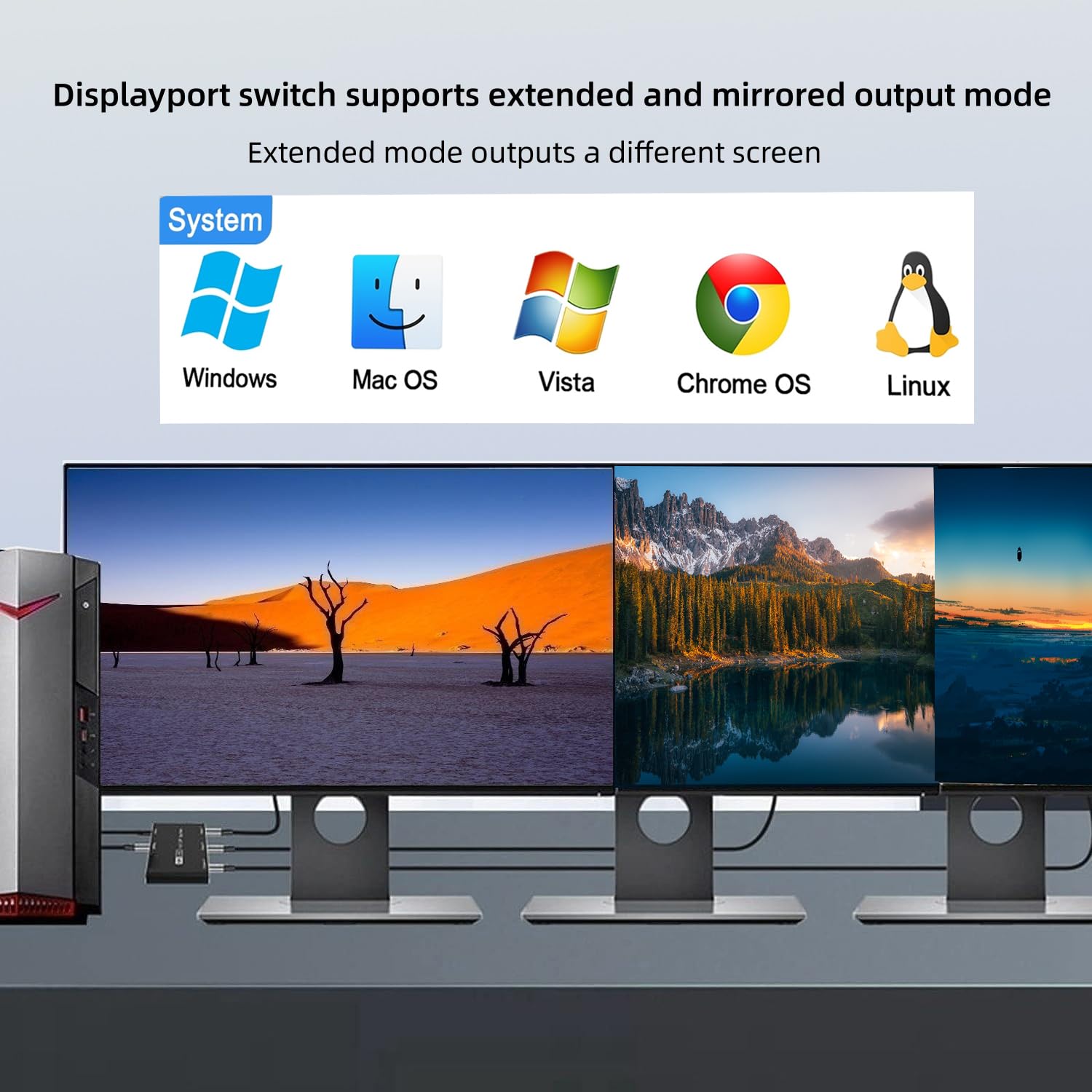

- MST Mode: This Displayport switch supports the "Advanced" output in MST mode. To do this, the DP cable must be connected directly to a DP graphics card, since the MST mode only works there.
- ATTENTION - only slashed MAc-suitable: The MST mode of Mac OS can only mirror one screen (i.e. the content displayed on the three screens is the same). Thus, the "extension of the desktop" is not suitable for a Mac environment. A Mac only outputs the identical image several times in both modes.
- Premium performance: Despite the low price, up to 8K are supported. The matt metal shell is fall-proof and not easy to scratch; corrosion resistance and durability; this DisplayPort splitter supports data transmission with a bandwidth of up to 32.4 Gbit/s.
- Plug-and-play.

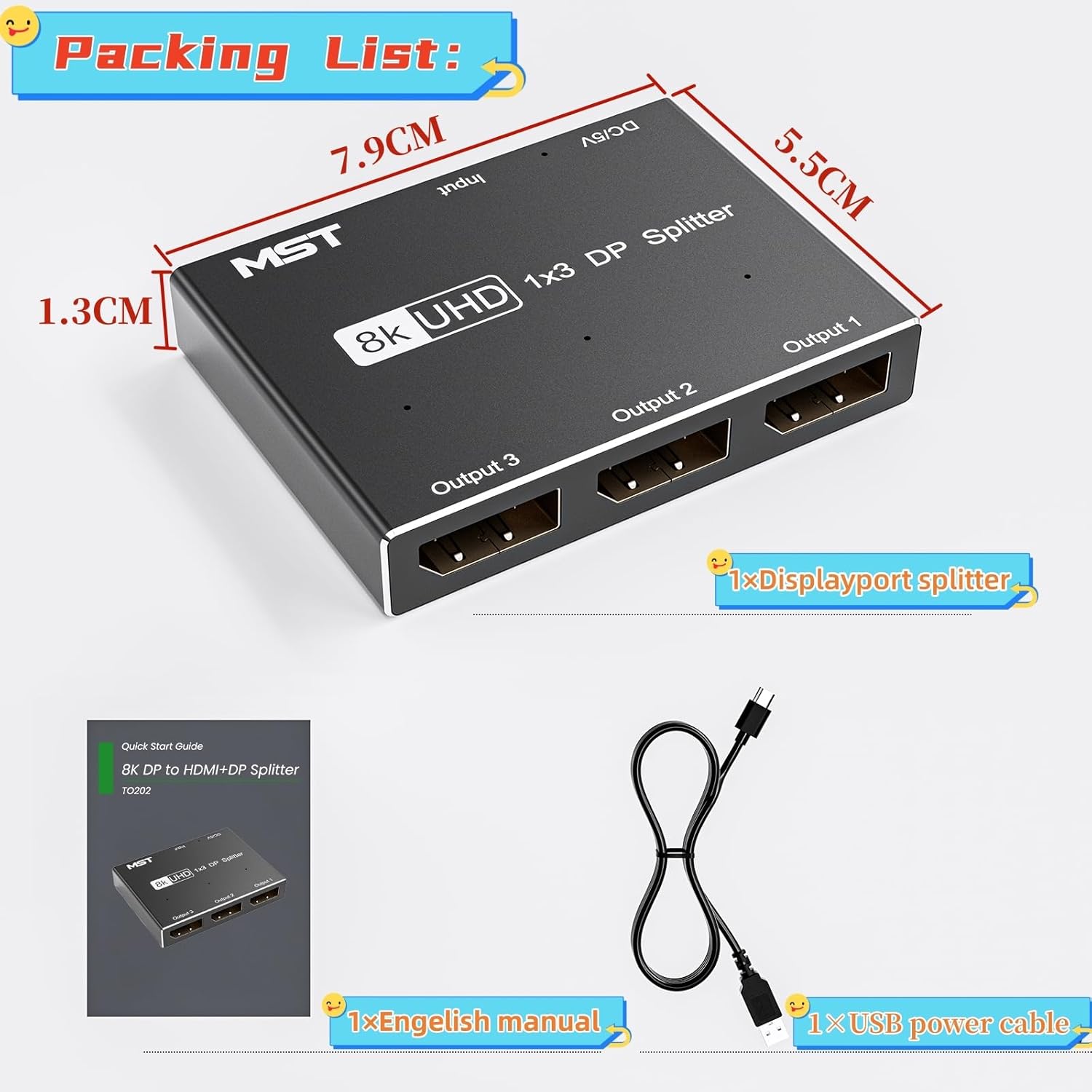

- NOTES: 1. You need to connect standard DP 1.4 cables and use the USB cable to power. 2. The maximum resolution and refresh rate you get depends on your source device, monitor, DP cable, and other hardware devices. If the screen flickers during use, please try to reconnect it and use a shorter cable connection.
- Resolution range:
Ultra HD 8K Video Edition: 8K@30Hz, 5K@60Hz, 4K@144Hz, 4K@120Hz, 1440P@165Hz, 1080P@240Hz
- DP cable area: The length of the DP cable should not exceed 3 meters
Further explanations:
1. The 1.1-in-3-out display port splitter allows 3 DP video sources to share a display and supports the simultaneous output of 3 same screens in mirror mode or 3 different screens in MST mode without signal loss.
2. The Multi-Monitor Splitter DisplayPort with MST and SST supports the DisplayPort 1.4 version. It allows the simultaneous distribution of a DP source on three displays without signal loss. It is not a switch and it does not work (otherwise) from 3-DP sources to a DP display.
3. Displayport Switch offers you transmission rates of up to 32.4 Gbit/s and is backward compatible with all previous DP standards. ⚠️NOTE: Please make sure you are using a standard DP 1.4 cable (no longer than 3 m), otherwise it will flicker or the screen will turn black.
4. You can output a maximum of 4K@120Hz, 1440P@165Hz, 1080P@240Hz video and image on your displays via our Displayport switch. If you want a resolution of up to 8K, an 8K source device, 8K cable and displays are required.
