4-Port 4K Quadview HDMI 2.0 + USB "seamless" KVM-Switch, UNICLASS RH2041
The Uniclass 4K MultiView KVM Switch is a standalone device which designed to meet the requirement of multi-task. It allows the user to simultaneously monitor up to four HD HDMI multimedia sources on a single HDTV and upscale the resolution up to 4K. Meanwhile, a PC connection is supported, user can also fully access, control and reboot the connected computer through this switch.
4K Display
4K is a new standard of display which delivering four times the resolution of Full HD. The RH2041 series support various input as long as built-in an HDMI connection and upscale the resolution up to 4K. It means the images can be demonstrated sharper and contain more details using the RH2041 series.
Seamless Switching of Ports and Video Modes

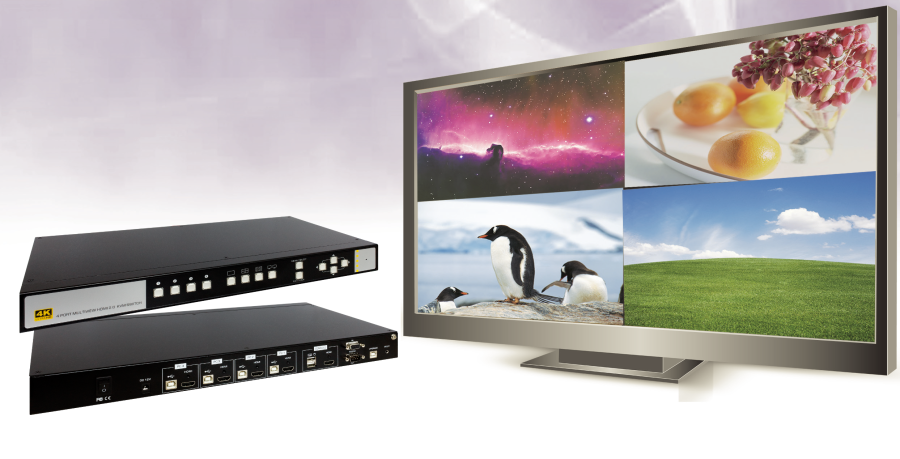

Video mode selection between Full-Screen and Quad-View. There is no freeze or black screen when switching between different video sources or even the display modes, for example, full screen or quad-view. It’s perfect to meet the requirement of specific applications, such as security or monitoring.
The mouse cursor can cross from one window to others freely by moving without pressing front panel buttons in QuadView mode.
Features
- KVM Mouse hopping for MultiView screen
- Seamless switching between input channels and combined multiple images on single monitor
- Support HDMI® signals with Deep Color and HDCP 1.4 / 2.2.
- Support input resolution up to 4K @ 60 Hz (each input up to 1080p), 4:4:4 Color Sampling
- Support output resolution up to 4K @ 60 Hz, 4:4:4 color sampling
- Support upscaling up to 4K@60Hz, 4:4:4 color sampling
- Receive Dolby Digital® 5.1, DTS® 5.1 and uncompressed 7.1 linear PCM audio includes stereo HDMI audio input
- Support stereo HDMI audio output
- Support front panel button, IR remote control, RS232 and keyboard Hot-key
- Support firmware upgrade
Specifications
| Model No. |
RH2041 |
| Video In |
4 x HDMI Type A Female (Lockable) |
| Video Out |
1 x HDMI Type A Female (Lockable) |
| RS232 |
1 x DB9 Female |
| IR |
1 x Receiver, 1 x IR Extender (3.5mm Earphone Jack) |
| USB Port |
2 x USB Type A |
| LEDs |
4 |
| Switch/Button |
14 x Momentary Swtich,
1 x 2 Position Power Switch |
| Video Resolution |
4K @60Hz |
| Dimension (L x W x H) |
438 x 200 x 44 mm |
| Weight |
2.1kg |
| Power Adapter |
DC 12V |
| Housing |
Metal enclosure |
| Operation Temperature |
0 ~ 40°C |
| Storage Temperature |
-20 ~ 60°C |
| Humidity |
0~90% RH, Non-condensing |
| Safety / Emission |
CE, FCC |
