Dual Monitor 4K DP 4-Port KVM-Switch 60Hz 4:4:4 incl. IR-Control and Cable, TESmart PKS0802A10 DKS402-E23-EUBK
Dual Monitor 4K DisplayPort 4-Port KVM-Switch 60Hz 4:4:4 incl. IR-Control and Cable, TESmart PKS0802A10 DKS402-E23-EUBK
This new generation 4-port Dual-Monitor KVM-switch opens up a unique class of KVM switches.
It supports resolutions of up to 2x 4K 3840 * 2160 at 60 Hz with full color depth 4:4:4.
With HDCP 2.2 support, you can connect not only PCs and notebooks (possibly via docking stations), but also game consoles, etc..
You can also connect a USB printer, touch screen, etc. (with a USB hub, several devices) to an additional USB 2.0 output.
The additional stereo-out analog audio output allows you to choose whether you use loudspeakers in the monitor or external loudspeakers.

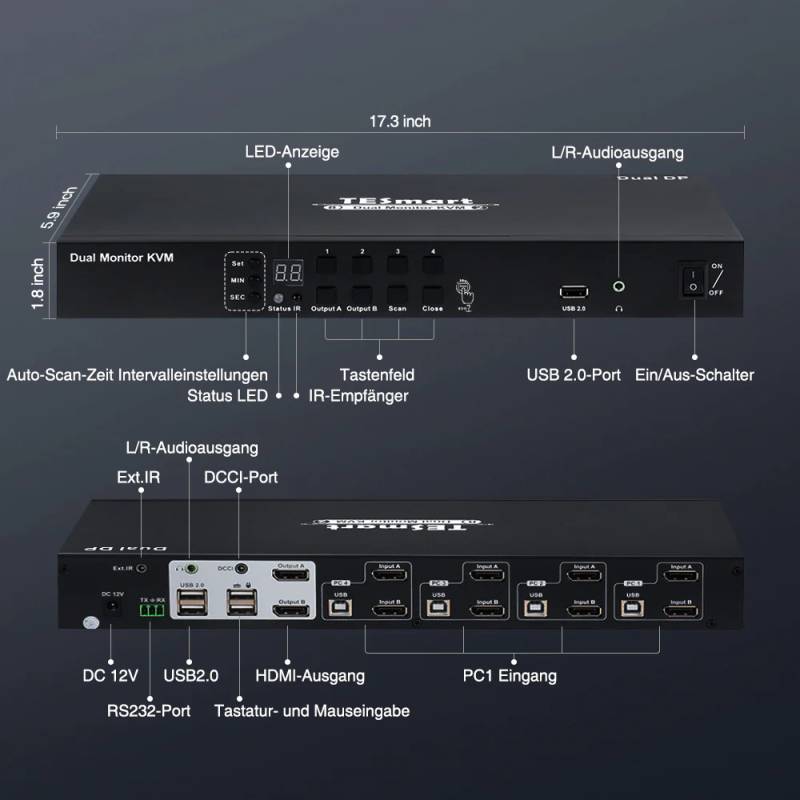

To switch, you not only have the hotkey (key sequence on the keyboard) toggle, but also a button on the switch and the supplied IR remote control to switch to the desired computer.
We deliver including all HDMI cable to compurters. 4x 1.5m USB and 8x 1.5m DP cable..
Note: each computer requires 2x DP out (or mDP, USB-C with "DP Alt Mode", USB4 with DP adaptation) and the monitors each need a DP input.
For technological reasons, it is not possible to adapt from/to HDMI or DVI.
- Using only 1 set of keyboard, mouse and monitor to control up to 4 PCs
- EDID emulation prevents resolution and icon rearrangement
- Support front panel buttons, IR signals, keyboard hot keys and RS232 to control KVM to switch inputs
- Available to use keyboard and mouse without any delay after switch input sources
- Support resolution up to 2x 3840*2160 @ 60Hz 4:4:4
- HDCP 2.2 compliant
- Support USB 2.0 for printers, USB drives, etc
- With EDID emulators in eachinput port, keep PCs always having correct display information (note: DP can not emulate the existing of the monitors)
- Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system
- Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
- Support analog L/R audio output
- Support HDR 10 and Dolby Vision
- Support keyboard and mouse pass through mode to improve KM compatibility
- Support auto switching to monitor computers in a specified time interval
Scope of delivery:
PKS0802A10 x1
power supply 12V / 2A DC x1
1.5m USB cable x4
1.5m HDMI cable x8
IR remote control x1
IR sensor extension cable x1
19" mounting bracket x2
User Manual x1
Specifications:
|
PKS0802A10
|
4-Port Dual Monitor DP KVM Switch 4K@60Hz 4:4:4
|
| Functionality: |
|
Auto Scan
|
Yes
|
|
Port selection
|
Front panel buttons
|
Yes
|
|
Keyboard hotkeys
|
Yes
|
| IR remote control |
Yes |
|
RS232 control
|
Yes
|
|
Technical:
|
|
Resolution
|
Up to 3840x2160@60Hz 4:4:4
|
|
Auto to get EDID
|
Yes
|
|
Data rate
|
18 Gbps
|
|
Beep Sound
|
On/Off
|
|
Supported OS
|
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
|
|
Console ports
|
Keyboard emulation
|
1 * USB Type A
|
|
Mouse emulation
|
1 * USB Type A
|
|
USB 2.0 Hub ports
|
1 * USB Type A
|
| Video /Audio |
2 * DP female |
|
L/R Audio output
|
1 * AUX
|
|
System ports
|
USB Data
|
4 * USB Type B
|
|
Video / Audio
|
8 * DP female
|
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
Mechanical:
|
|
Chasing material
|
Metal
|
|
Product dimensions
|
405 (L) x 205 (W) x 110 (H) mm
|
|
Item weight
|
1500g (2.96 kg gross)
|
B2B Product - Designed for use in a commercial environment.
